Fabric Tag UHF – LGHL42x

Description

This tag, based on a flexible antenna and fabric, is a UHF laundry tag specifically designed for linen management.

The tag can withstand over 200 industrial wash cycles, thanks to its thinness and resistance to pressure and high temperatures. The laundry tag is equipped with a globally unique identification code, which is applied by sewing/heat-pressing a tag onto each piece of linen. While using the laundry, users can perform batch readings, even remotely, and quickly check the linens via an RFID reader, automatically recording linen usage and wash times.

This will make laundry task delivery simple and transparent, and significantly improve the efficiency of inventory control thanks to the UHF laundry tag. At the same time, users can predict the lifespan of the linen in use and plan purchases by collecting wash time data.

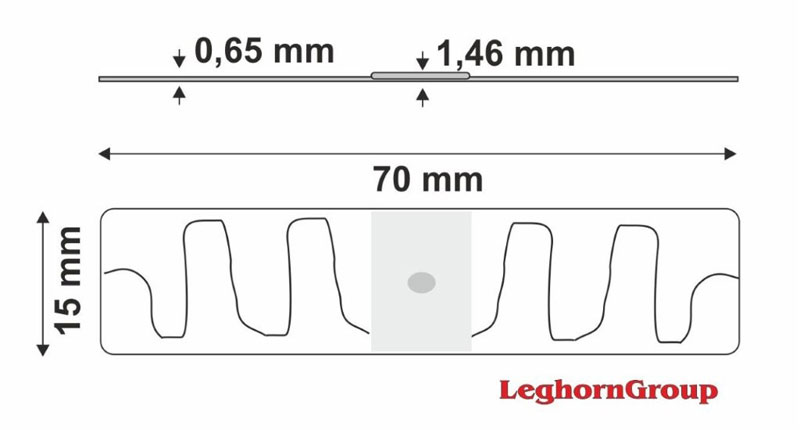

TECHNICAL DRAWING



TECHNICAL DATA

RFID Standard	UHF EPC Class 1 Gen 2, ISO 18000-6C
Frequency	860-960 MHz (worldwide)
Length x Width	70 x 10 mm (2.7 x 0.4 in)
Thickness	1.53 mm (0.06 in) on chip location only, Rest of tag is 0.65 mm (0.03 in)
Weight	0.4 g
Material	Polyester
Chip Type	NXP Ucode 9xe
Memory	User – N/A; EPC – 128 bits; TID – 96 bits
Data Storage	> 20 years
Re-write	100,000 times
Read Range (Fixed Reader)	> 7.5 m (25 ft)
Read Range (Handheld Reader)	> 10.0 m (33 ft)
Installation	Sewn inside the hem or pouch
Warranty	200 washing cycles or 3 years, whichever comes first
Washing Method	Laundry, Dry cleaning
Water Extraction Pressure	60 bars
Chemical Resistance	Detergent, Softener, Bleach (Oxygen/Chlorine), Alkali
Washing Temperature	90°C (194°F) / 15 minutes
Pre-drying in Tumble	180°C (356°F) / 30 minutes
Ironing Temperature	185°C (365°F) / 10 seconds
Sterilization Temperature	135°C (275°F) / 20 minutes
Humidity/Temperature – Operating	-20~+85°C (-4~+185°F) / 8~95% RH
Personalization	Serial number, LOGO printing, Encoding, Antenna design etc
Applications	Industrial washing/Management of uniforms, Medical apparel management/Military clothing management
