Identification Seal UHF RFID PALLET SEAL

It is a plastic security seal ideal for RFID automatic identification of wooden and plastic pallet

REQUEST FOR QUOTATION

Description

The RFID PALLET SEAL is a plastic security seal ideal for wood pallet.
The added RFID, electronic component turns it into a product that can store a lot of information for logistics and traceability purposes.
Tear-off possibility or standard version.



TECHNICAL DRAWING

plastic seal rfid palletseal technical drawing



SIZE
– Thickness: 4 mm (5/32”)
– Label: 30 x 65 mm (1” 3/16” x 2” 9/16”)



MATERIAL
In accordance with: Restriction of Hazardous Substances (RoHS) listed in the European Directive 2002/EC.



MARKING OPTIONS
– LASER PRINT
– Sequenced numbering up to 15 digits
– Bar-code possibility
– Customised up to 20 characters on one line
– Logos available upon request
– For special orders, logo printing in relief



RFID PALLET SEAL UHF TECHNICAL SPECIFICATION

RF protocol EPC Class 1 Gen2 – ISO/IEC 18000-6C
Integrated Circuit(IC) IMPINJ Monza 3 ; Read/Write
Memory EEPROM
Operating  Frequency 860 – 960 MHz  – UHF Global
Protection IP66
Operating temp. -20°C to +80°C
Storage temp. -20°C to +80°C
Tag Dimension 60×60 mm (2” 23/64” x 2” 23/64”)
Reading distance: Typical reading  with  handheld reader: 50 – 80 cm (1” 31/32” – 3” 5/32”)
Typical automatic reading with gate large 4 mt
Resistant to harsh factory environment

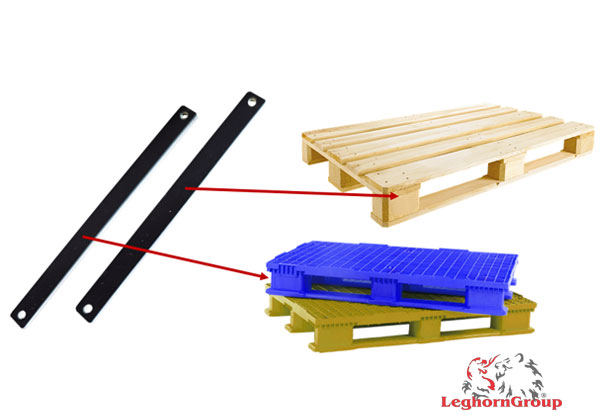

Examples of use

plastic seal rfid palletseal examples of use
