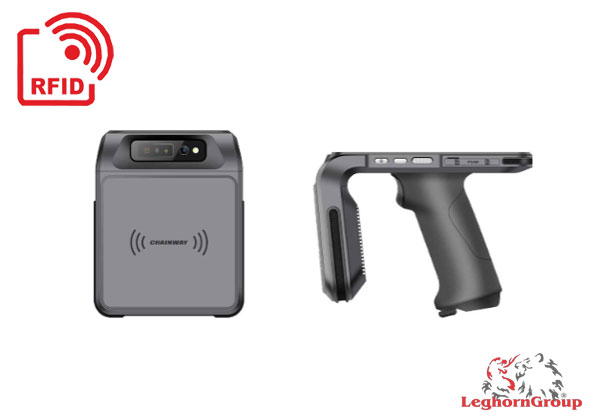

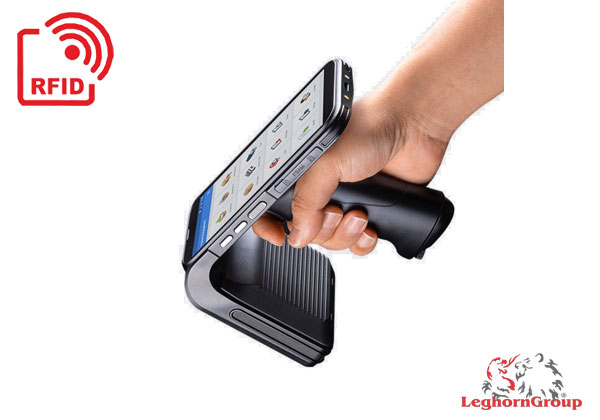

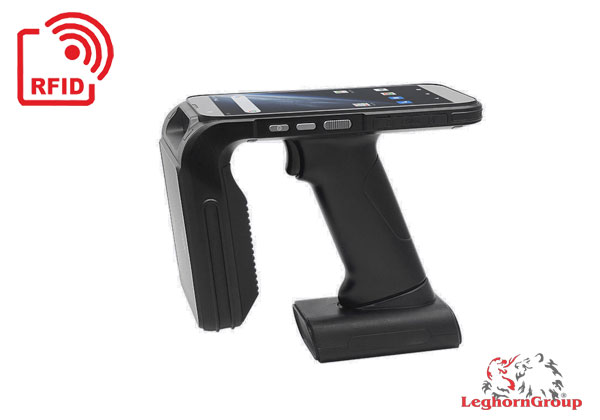

High-performance all-in-one UHF RFID reader – LGH-C5

High-performance all-in-one UHF RFID reader. It integrates a UHF module based on the Impinj E710, supporting Impinj Gen2X and offering industry-leading UHF performance.

LGH-C5 features an integrated design, providing more stable UHF performance and greater durability.

The mobile computer’s advanced system configuration includes the Android 11/13 platform, an octa-core processor, optional large internal memory, and a high-capacity removable battery. It also supports 2D scanning, NFC, fingerprint recognition, and other functions, allowing for use in numerous sectors such as banking, public safety, warehousing, retail, logistics, and more.



TECHNICAL DATA

Performance

• CPU Octa-core, 2.3GHz
• RAM+ROM 3GB + 32GB / 4GB +64GB (Optional)
• Expansion Supports up to 256GB Micro SD (TF) card
• Operating System Android 11/13

Communication

• WLAN 802.11 a / b / g / n / ac, 2.4G / 5G dual-band
• WWAN
• 2G: GSM (B2 / B3 / B5 / B8)
• 3G: WCDMA (B1 / B2 / B4 / B5 / B8)
• CDMA2000 ECDO: BC0
• 4G: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B17 / B20 / B28A / B28B / B38 / B39 / B40 / B41
• Bluetooth 5.0
• Vo-LTE Support
• GNSS GPS / AGPS, GLONASS, BeiDou, Galileo

Physical Characteristics

• Dimensions 177.0 x 80.2 x 14.8mm / 6.97 x 3.15 x 0.58in
• Weight 626g / 22.08oz. (device with battery)
• Display 5-inch (Fingerprint), 1280 x 720 / 6-inch, 2160 x 1080
• Touch Panel Multi-touch panel, gloves and wet hands supported; Corning Gorilla Glass
• Battery 6700mAh / 13400mAh removable pistol battery
• Built in 100mAh backup battery, supporting battery hot swap
• Card slot 2 slots for PSAM card (optional); 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card
• Interfaces USB 2.0 Type-C, OTG, Type-C headphones supported
• Audio 1 microphone; 1 speakers; 1 receiver
• Notification Sound, LED indicator, vibrator
• Keypad 1 power key, 2 scan keys, 1 user-defined key, 2 volume keys (+/-)
• Sensor Gravity sensor, proximity sensor, light sensor, geomagnetic sensor (optional), gyroscope (optional)

Developing Environment

• SDK Software Development Kit
• Language Java
• Tool Eclipse / Android Studio

User Environment

• Operating Temp.-20 °C to 50 °C / 4 °F to 122 °F
• Storage Temp.-40 °C to 70 °C / -40 °F to 158 °F
• Humidity 5%RH to 95%RH (non condensing)
• Drop Specification Multiple 1.5m / 4.9ft. drops to the concrete across the operating temperature range
• Tumble Specification 1000 x 0.5m / 1.64 ft. falls at room temperature
• Sealing IP65 per IEC sealing specifications
• ESD ±15KV air discharge, ±8KV conductive discharge

Data Collection

• Camera Front camera 5MP Rear camera Rear 13MP Autofocus with flash

UHF

• Impinj Gen2X Supported
• Protocol EPCglobal Gen 2 (ISO18000-6C)
• Frequency 865-868MHz / 920-925MHz / 902-928MHz
• Engine CM710-1 module based on Impinj E710
• Output power 1W (30dBm, +5dBm to +30dBm adjustable) 2W Optional (33dBm, for Latin America, etc.)
• Antenna Circular polarization; 5dBi / 4dBi (NFC supported)
• Max Read Range
  • 5dBi
    • 30m (Impinj MR6 tag, size 70 x 15mm)
    • 32m (Impinj M750 tag, size 70 x 15mm)
    • 33m (Alien H3 Anti-Metal tag, size 130 x 42mm)
  • 4dBi
    • 22m (Impinj MR6 tag, size 70 x 15mm)
    • 26m (Impinj M750 tag, size 70 x 15mm)
    • 27m (Alien H3 Anti-Metal tag, size 130 x 42mm)
• Fastest Read Rate 1300+ tags / sec (Circular Polarized)

* Ranges and rates depend on tags and environment

Fingerprint (Optional)

• Sensor TLK1NC02
• Sensing Area (mm) 14.0 X 22.0
• Resolution (dpi) 508dpi, 256 greylevel
• Certifications FIPS 201, FBI
• Format Extraction ISO19794, WSQ, ANSI 378, JPEG2000
• Fake Finger Detection Support by SDK
• Security AES, DES key encryption of the host communication channel

NFC (Optional)

• Frequency 13.56MHz
• Protocol ISO14443A / B, ISO15693, NFC-IP1, NFC-IP2 etc.
• Chips M1 card (S50, S70), CPU card, NFC tags etc.
• Range 2-4cm

Barcode Scanning (Optional)

• 2D Scanner CM60; Zebra: SE4710
• 1D Symbologies UPC / EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS etc.
• 2D Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX) etc.

Accessories

USB Cable, Adapter, Charging Cradle for device (optional), Charging Cradle for Pistol Battery (optional)
