Silicone RFID Laundry Tag – LGSL5512

Description

The Silicone RFID Laundry Tag is a washable UHF silicone tag, designed to withstand extreme conditions with extraordinary durability. Designed for harsh environments, it withstands up to 200 consecutive cycles of tumble washing, hot drying, intensive cleaning, and ironing. It features a resilient RFID transponder that ensures reliable performance even in harsh conditions.

This silicone RFID laundry tag integrates seamlessly with a variety of textiles, including linens, towels, blouses, and medical uniforms. Its versatility and rugged construction make it an essential tool for laundry operations, offering unmatched reliability and efficiency wherever durability is crucial.

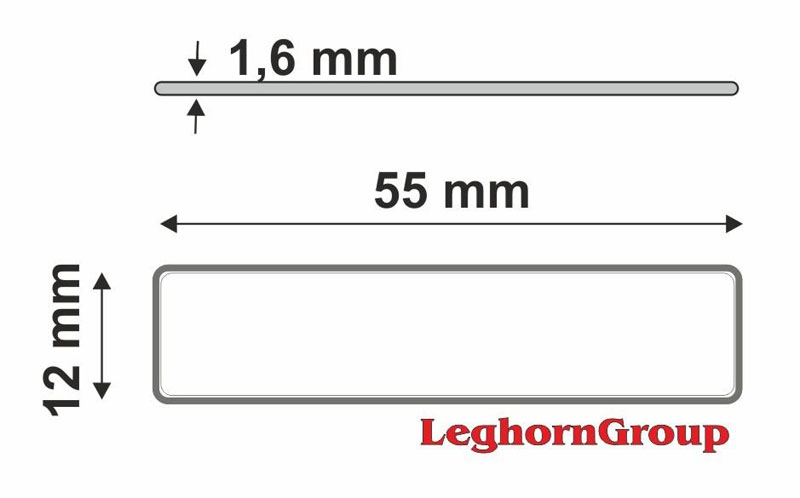

TECHNICAL DRAWING



TECHNICAL DATA

Protocol	ISO 18000-6C / EPC global Class1 Gen2
Working Frequency	902~928MHz, and customized frequency
RFID Chip	Impinj Monza 4QT, NXP UCODE 9
Memory	EPC code: 128 bits / 96 bits
TID	TID 96 bits
Write Endurance	100,000 times
Data Retention	20 years
Dimension	55 × 12 × 2.5 mm
Material	Silicone
Delivery Format	In piece
Reading Range	Up to 6 m (Depends on handheld reader 33 dBm)
Working Temperature	-25°C ~ +200°C
Humidity	5% ~ 95% RH
Washing Cycle	– Washing: +60°C (140°F) / 10 minutes – Drying: +60°C (140°F) / 30 minutes – Water Extractor Pressure: 60 bars – Sterilization Process: +121°C (250°F) / 15 minutes
Warranty	200 wash cycles or 1 year
