Achelou Seal

Cable seal with hexagonal body

REQUEST FOR QUOTATION

Description

Cable seal. To seal insert the cable into the body of the seal and pull through as much as possible.



TECHNICAL DRAWING

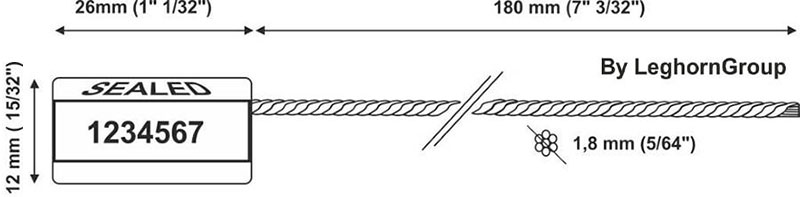

cable seal achelou technical drawing



SIZE
Diameter: 1.8 mm (0″ 5/64″)
Length: 180 mm (7″ 3/32″)



MATERIAL
Cable with hexagonal zinc head covered with ABS plastic.



COLORS & CUSTOMIZATIONS

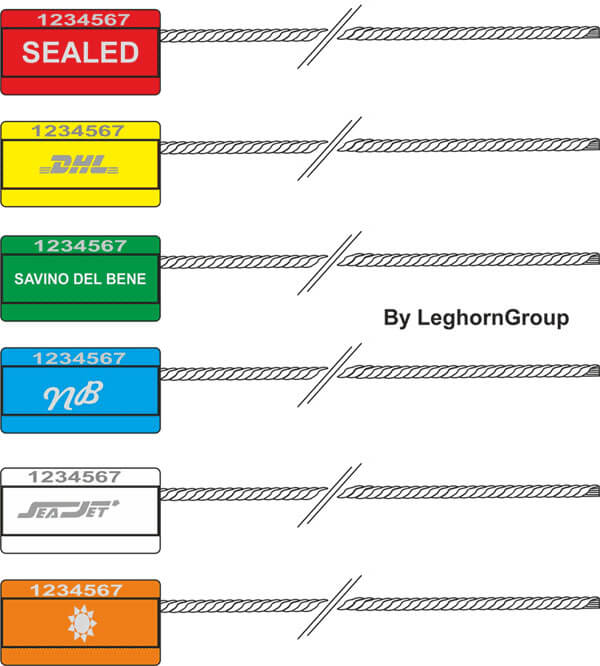

cable seal achelou colors customizations



NUMBERING AND CUSTOMISATION
– HOT PRINT printing
– Sequential Numbering  up to 15 digits
– Customisation up to 20 characters on one line
– Client’s logo on request



PACKING
1000 pcs per carton
Carton size: 335x300x148 mm (13″ 3/16″ x 11″ 13/16″ x 5″ 53/64″)
Carton weight: 18 kgs (39lb)
