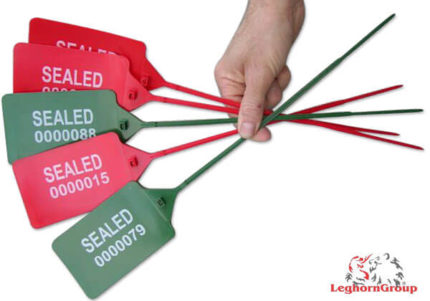

Adjustable length seal TITAN SEAL 5×328 mm

Adjustable length plastic seal. Tear-off tag possibility Label size 72 x 110 mm

REQUEST FOR QUOTATION

Description

Adjustable length plastic seals. Quick and safe application: Tear-off tag possibility.



TECHNICAL DRAWING

plastic seals titanseal 5×328 mm technical drawing



SIZE
Diameter: 5 mm (13/64”)
Length: 328 mm (12” 29/32”)
Label size: 72 x 110 mm (2” 53/64” x 4” 21/64”)



MATERIAL
In accordance with : Restriction of Hazardous Substances (RoHS) listed in the European Directive 2002/EC.



COLOURS & CUSTOMIZATIONS

plastic seal titanseal colours customizations



MARKING
– Laser marking
– Sequentially numbering (max 15 digits)
– Barcode possibility
– Customisation up to 20 digits on a line
– Logo printing upon customer’s request
– For special orders embossed logo printing



PACKAGING
Cartons of 500 seals
Carton dimensions: 47 x 39 x 12 cm (18” 1/2” x 15” 23/64” x 4” 23/32”)
Carton weight: 6 kg (13 lb)

How to use

A) Insert the tail of the plastic Titanseal into the holes of the truck doors.

plastic seal titanseal how to use

B) Then insert the tail into the split and pull to seal it properly.

plastic seal titanseal how to use

C) Use scissors or shears to remove the seal.

plastic seal titanseal how to use

D) Remove the seal from the holes of the truck.

plastic seal titanseal how to use
