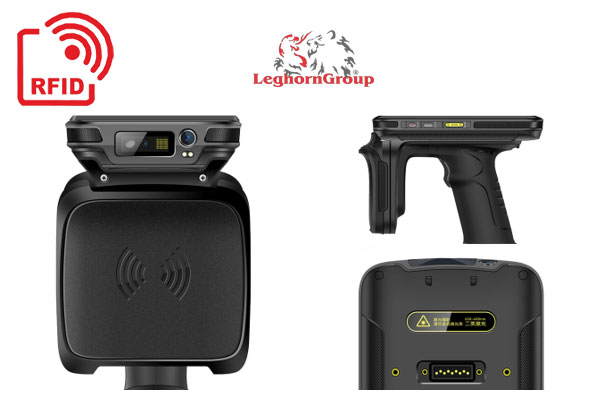

Android-based UHF RFID Reader – LGHC72
Android-based UHF RFID Reader – LGHC72

Android-based UHF RFID Reader – LGHC72

LGH-C72 is a rugged Android-based UHF RFID reader that boasts best-in-class UHF RFID capability.


REQUEST FOR QUOTATION

Description

LGHC72 is a rugged Android-based UHF RFID reader boasting best-in-class UHF RFID capability. Equipped with an integrated Impinj E710 (supporting Impinj Gen2X), it enables a reading distance of over 30 m and excellent performance. The RFID reader features optional barcode scanning, an octa-core processor, and a high-power 8000 mAh battery to perfectly meet the needs of intensive applications, particularly in asset management, retail, warehousing, apparel inventory, highway tolls, fleet management, finance, etc.

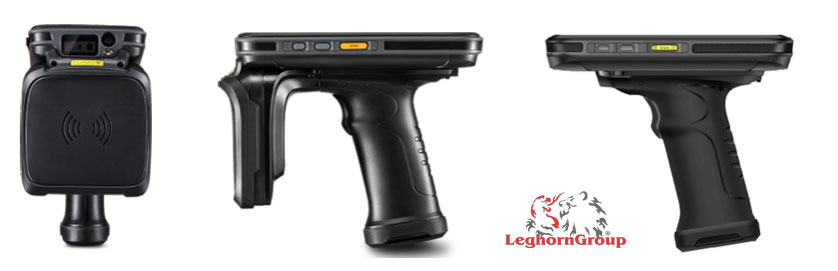

Android-based UHF RFID Reader – LGHC72



TECHNICAL DATA

Performance

  • Operating System Android 11/13; GMS, 90-day security updates, ZeroTouch, FOTA, Soti MobiControl, SafeUEM supported
  • CPU Octa-core 2.3 GHz
  • RAM+ROM 3GB + 32GB / 4GB + 64GB (optional)
  • Expansion Supports up to 256GB Micro SD (TF) card

Communication

  • WLAN IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna
  • Bluetooth Bluetooth 5.0
  • GNSS GPS/AGPS, GLONASS, BeiDou; internal antenna
  • WWAN
    • 2G: GSM850/GSM900/DCS1800/PCS1900
    • 3G: WCDMA: B1/B2/B4/B5/B8 CDMA2000 EVDO: BC0 TD-SCDMA: A/F
  • 4G:B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B28A/B28B/B34/B38/B39/B40/B41

Physical Characteristics

  • Dimensions 164.2 x 80.0 x 24.3 mm / 6.46 x 3.15 x 0.96 in.
  • Weight 654 g / 23.07 oz.
  • Display 5.2” IPS LTPS 1920 x 1080
  • Touch Panel Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
  • Power Li-ion, rechargeable, 8000 mAh
    • Standby: over 500 hours Continuous use: over 12 hours (depending on user environment)
    • Charging time: 3-4 hours (with standard adaptor and USB cable)
  • Expansion Slot 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card
  • Interfaces USB 2.0 Type-C, OTG, Type-C headphones supported
  • Sensors Light sensor, proximity sensor, gravity sensor
  • Notification Sound, LED indicator
  • Audio 1 microphone; 1 speaker; receiver
  • Keypad 4 front keys, 1 power key, 2 scan keys, 1 multifunctional key

UHF

  • Engine CM710-1 module based on Impinj E710
  • Frequency 865-868 MHz / 920-925 MHz / 902-928 MHz
  • Impinj Gen2X Supported
  • Protocol EPC C1 GEN2 / ISO18000-6C
  • Antenna Circular Polarized Antenna (4dBi)
  • Power
    • 1W (30dBm, +5 dBm to +30 dBm adjustable)
    • 2W Optional (33dBm, for Latin America, etc.)
  • Max Read Range
    • 26m (Impinj MR6 tag, size 70 x 15mm)
    • 28m (Impinj M750 tag, size 70 x 15mm)
    • 30m (Alien H3 Anti-Metal tag, size 130 x 42mm)
  • Fastest Read Rate 1300+ tags/sec (circular polarization)

Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment.

NFC (Optional)

  • Frequency 13.56 MHz
  • Protocol ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
  • Chips M1 card (S50, S70), CPU card, NFC tags, etc.
  • Range 2-4 cm

Developing Environment

  • SDK Chainway Software Development Kit
  • Language Java
  • Tool Eclipse / Android Studio

User Environment

  • Operating Temp. -20 ℃~+50 ℃
  • Storage Temp. -40 ℃~+70 ℃
  • Humidity 5% RH – 95% RH non condensing
  • Drop Specification Multiple 1.5 m / 4.9 ft. drops to the concrete across the operating temperature range
  • Tumble Specification 1000 x 0.5 m / 1.64 ft. falls at room temperature
  • Sealing IP65 per IEC sealing specifications
  • ESD ±15 KV air discharge, ±6 KV conductive discharge

Data Collection

  • Camera Rear 13 MP Autofocus with flash

Barcode Scanning (Optional)

  • 1D Linear Scanner Honeywell: N4313
  • 1D Symbologies UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
  • 2D Imager Scanner Zebra: SE4710 / SE4750SR / SE4750MR / SE4750DP; Honeywell: N6603; CM60
  • 2D Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.

Accessories

Standard AC Adaptor, USB Cable, etc. Optional Cradle, Holster, etc.
