Annealed steel galvanized sealing wire

1 mm diameter galvanized steel sealing wire technical data table

REQUEST FOR QUOTATION

Description

Annealed steel galvanized sealing wire

The 1mm diameter galvanized sealing wire for seals is the most used in the field of wire seals.
Its spiral shape is suitable for being used with lead seals and the related lead seal press.
Once the lead seal is pressed down correctly, pulling out the seal would not be possible.
We generally supply galvanized sealing wire in various reels weight and in parts which vary from 10 to 150 cm long.

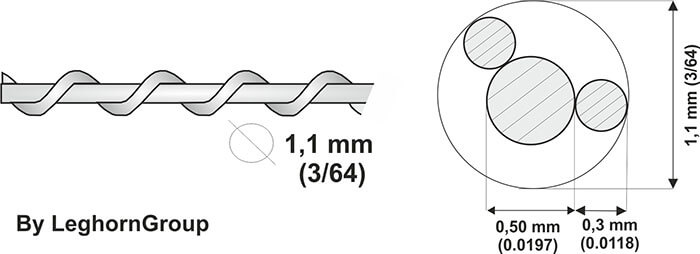

TECHNICAL DRAWING

galvanized steel sealing wire technical drawing



MATERIAL CLASSIFACTION
Galvanized steel annealed



CHEMICAL BREAKDOWN

C % Mn % P % S %
0.08 0.045 0.035 0.035

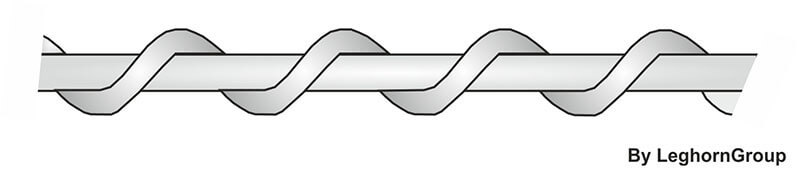

COLORS

galvanized steel sealing wire colors



COMPOSITION
Core wire: Ø 0.50 mm
Spiral wire: Ø 0.30 mm



MECHANICAL CARACHTERISTICS: TOTAL DIAMETER /  BREAKING LOAD

STANDARD DIAMETER mm TOLLERANCE Ø BREAKING LOAD N/mm²
1.00 10% 300/450

STRENGTH PER METRE: 2,45g (1 Kg = 400 m ca)



STRUCTURAL CARACTHERISTICS
COIL DISTANCE: 2.00 mm  (50 coils per 100 mm)



SURFACE CARACHTERISTICS
– SURFACE SATE: ZINC COATING
– Minimum zinc coating 20gr/m2

Examples of use

galvanized steel sealing wire examples of use
