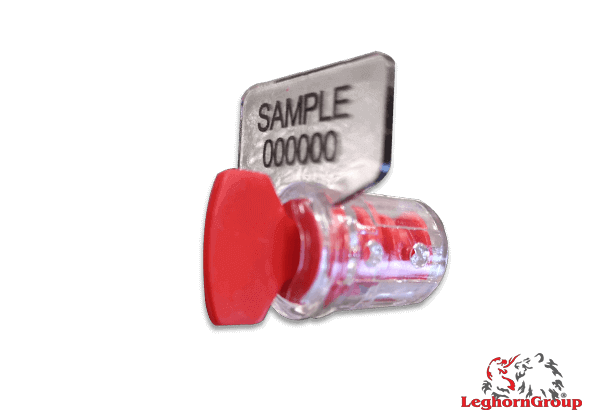

Security meter seal TWIST SEAL

Security meter seal. Tamper evident twist type seal for electric, gas and water meters. Seal supplied both with and without sealing wire

REQUEST FOR QUOTATION

Description

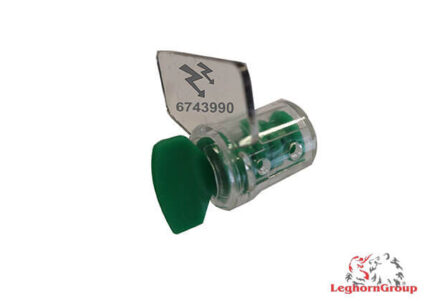

TWIST SEAL, wire seal, is particularly suitable to be used with electric, gas and water meters. It is moreover frequently used in the refinery and oil distribution sector. Transparent exterior for better control of the closing mechanism. To close, turn the handle of the seal 360°. Once closed it is advisable to snap off the handle. It is impossible to tamper the seal once it is secured.
It is impossible to tamper the seal once it is secured.

Types of printing:

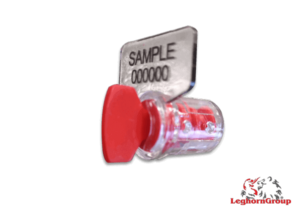

Standard

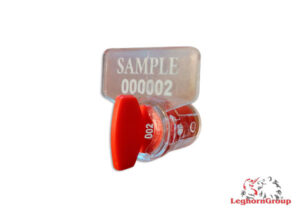

Double numbering

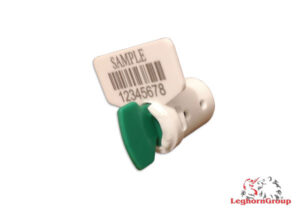

Barcode

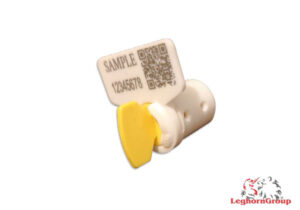

Data Matrix

The following sealing wires are suitable for TWIST SEAL:

  • Galvanised sealing wire
  • Stainless steel
  • Brass
  • Copper
  • Nylon copper

The sealing wire is not supplied together with the seal, but it can be separately purchased both in spools or in pre-cut pieces.
This seal is laser marking and can be customised with progressive numbering.
Furthermore, we manufacture also its RFID version.

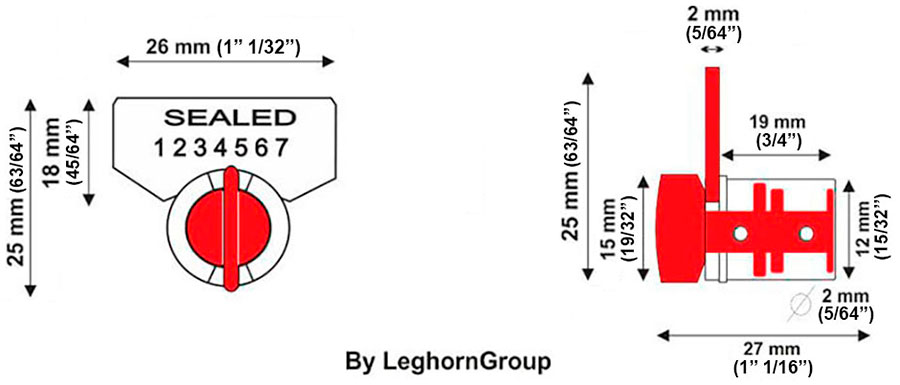

TECHNICAL DRAWING
security meter seal twist seal technical drawing



MATERIAL
Polycarbonate
ABS

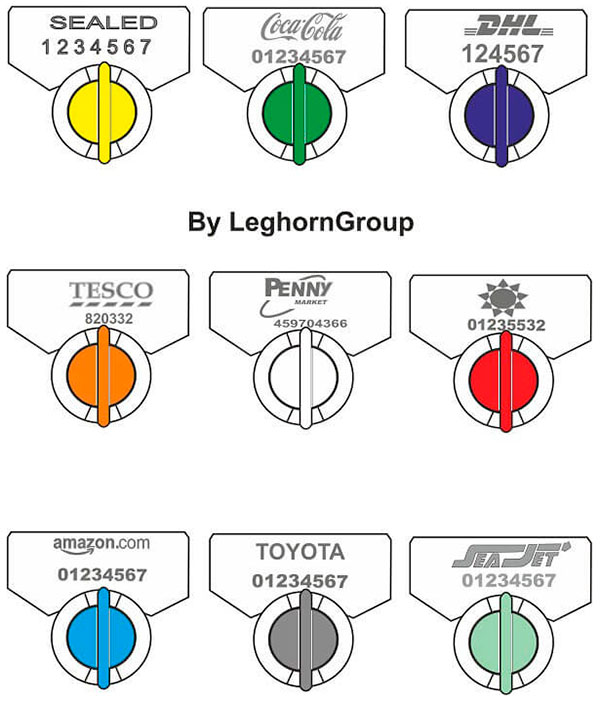

COLORS & CUSTOMIZATIONS

security meter seal twist seal colors customizations



SEQUENTIAL NUMBERING AND CUSTOMISATION
– LASER PRINT
– Sequenced numbering up to 15 digits
– Bar-code possibility
– Customised up to 20 characters on one line
– Logos available upon request
– For special orders, logo printing in relief



PACKAGING
Carton with 1000 seals in bags of 100 pieces numbered in sequence
Carton size: 40x23x23 cm
Carton weight: 4 kg (with 200mm sealing wire)
Pallet size: 120x80x175 cm – Pallet weight: 400 kg
Quantity per pallet: 100 cartons/100.000 seals

Examples of use

TRUCK:

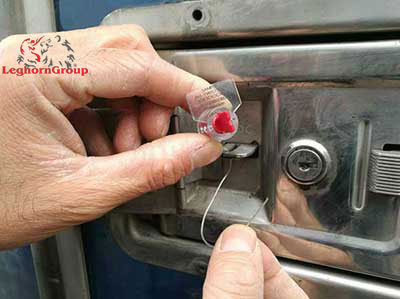

1) The TWIST SEAL wire seal is particularly suitable for difficult closures. Insert the spiral wire into the closing hole of the truck…

security meter seals twist seal examples of use

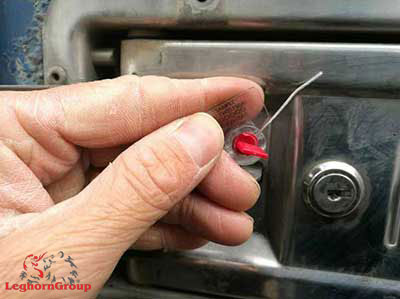

2) Insert the same spiral wire in the second hole
Seal and turn the red lever several times …

security meter seals twist seal examples of use

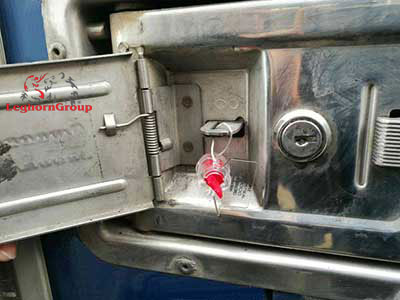

3) In this way the sealing of the truck is obtained
Although it is designed with very small steps.
This wire seal is very robust and cannot be accidentally broken.

security meter seals twist seal examples of use

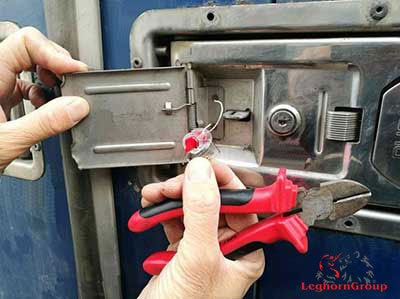

4) To remove the seal, just cut the spiral wire with a simple wire cutter.

security meter seals twist seal examples of use

BOTTLES:

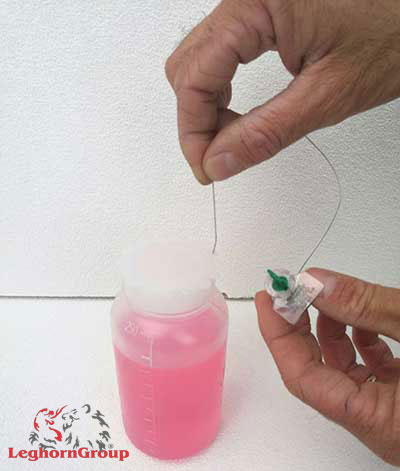

1) The TWIST SEAL wire seal is particularly suitable for difficult closures. Insert the spiral wire into the hole of the bottle cap for sampling …

security meter seals twist seal examples of use

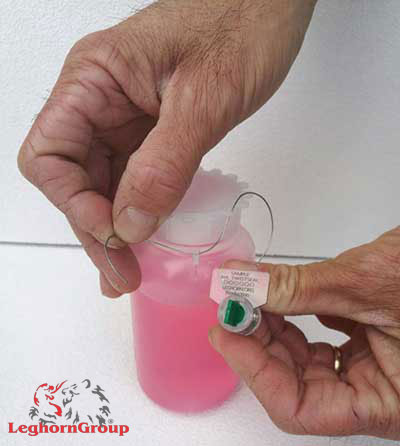

2) Then pass the same spiral wire through the hole
Located on the body of the bottle for sampling …

security meter seals twist seal examples of use

3) Insert the spiral wire into the free hole of the TWIST SEAL wire seal and turn the green lever several times. By doing so, the safe sealing of the bottle is obtained by sampling.

security meter seals twist seal examples of use

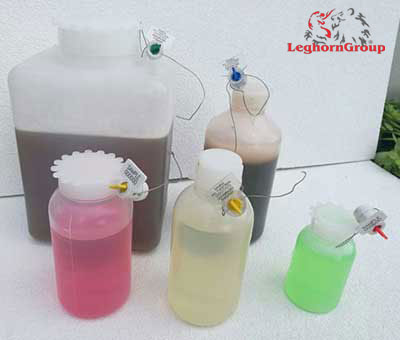

4) Different models of sampling bottles sealed with wire seals model TWIST SEAL.

security meter seals twist seal examples of use

COUNTERS:

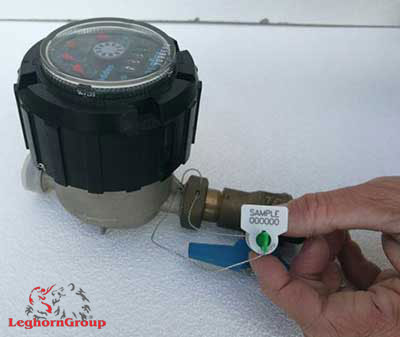

1) The TWIST SEAL wire seal is particularly suitable for closings of water, electricity and gas meters. Insert the spiral wire into the appropriate hole in the recocordo …

security meter seals twist seal examples of use

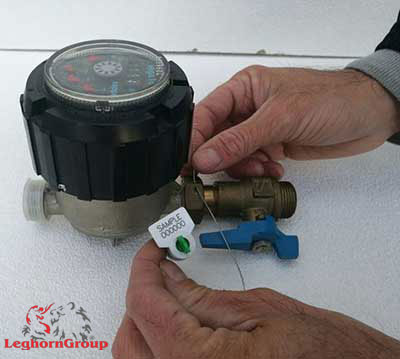

2) Then pass the same spiral wire through the hole
Located on the body of the counter …

security meter seals twist seal examples of use

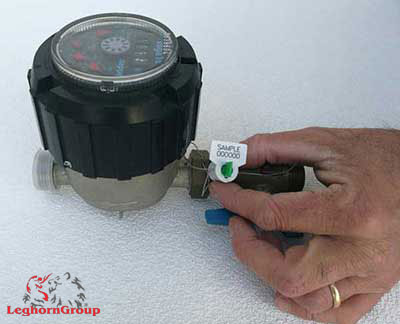

3) Insert the spiral wire into the free hole of the TWIST SEAL wire seal and turn the green lever several times. By doing this, the meter is sealed securely.

security meter seals twist seal examples of use

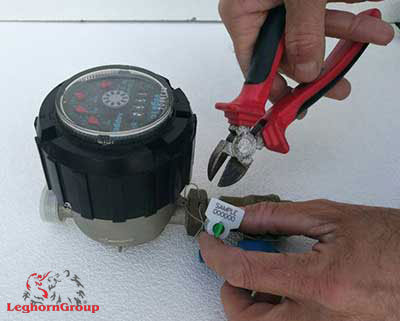

4) To remove the seal, cut it with a simple wire cutter.

security meter seals twist seal examples of use
