Electronic Seal – Solar eLOCK X

Description

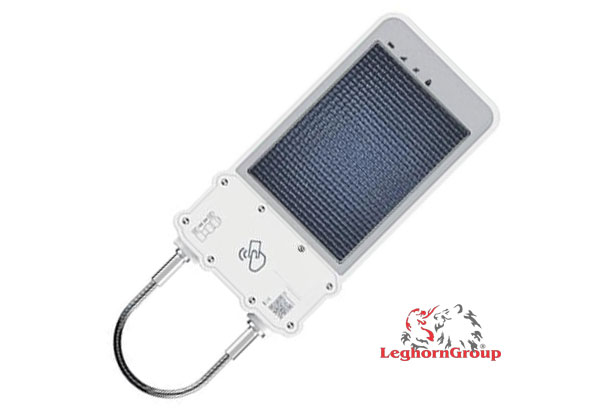

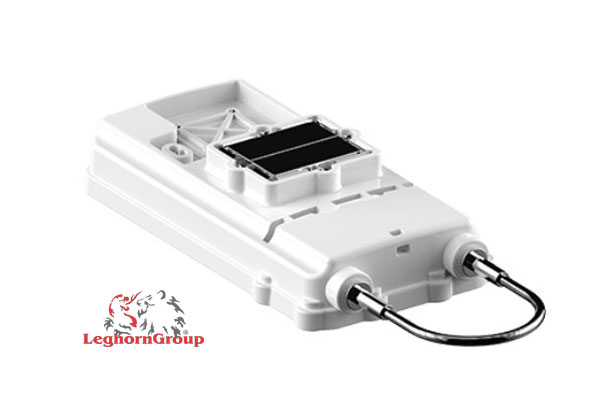

The Solar eLOCK X electronic seal, featuring GPS tracking and a battery-powered system with a solar panel, has been designed and developed for telematics-based asset tracking solutions in outdoor environments. It is equipped with a long-lasting battery powered by solar energy, with highly efficient charging capabilities, making it suitable for tracking and securing assets such as containers, trailers, trucks, and other cargo.

This device is, in effect, a solar-powered electronic lock for cargo and is capable of sending tamper and status alerts to the server, including cable cutting, locking, and unlocking events. The device can be opened either remotely or locally using RFID and BLE, as well as via network commands and SMS.

Main technical features

• Real-time and buffered positioning: real-time location updates can be performed every 3 seconds. Up to 49,000 location points can be stored when network coverage is unavailable.
• BLE 5.0
• Sensor compatibility: compatible with BLS temperature and humidity sensors, temperature and door-opening sensors, wireless relays, and other sensors.
• Motion detection: detects movement and provides alerts for asset displacement and parking status.
• Solar power: powered by a solar panel to extend battery life.
• Rugged construction: thick, solid housing designed for demanding outdoor environments.
• Ultra-long battery life: 14,400 mAh / 3.6 V rechargeable lithium-polymer battery, providing months of operation without solar charging.
• IP67 waterproof protection: tested in an environment with a water pressure equivalent to a depth of 5 meters for 15 hours.
• Security alerts: alerts for locking, unlocking, and cable cutting.
• Multiple control modes: unlocking via RFID, BLE, OTA, or SMS commands.
• Built-in powerful magnet: enables easy installation on assets.
• Integrated geofencing: supports locking, unlocking, and cable-cutting alerts based on geofence status.
• FOTA: firmware updates over the air.
