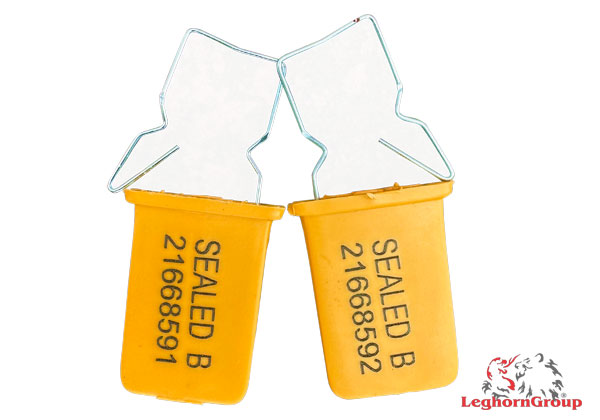

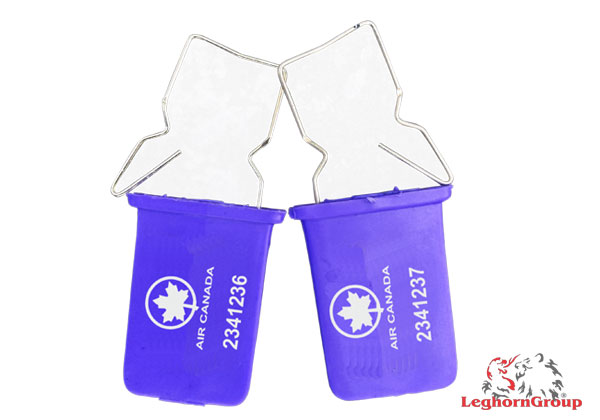

Padlockseal 180-1

Plastic padlock security seal with metal hasp particularly suitable in the aviation field

REQUEST FOR QUOTATION

Description

Padlock security seal particularly suitable in the aviation field. Plastic body and metal hasp.



TECHNICAL DRAWING

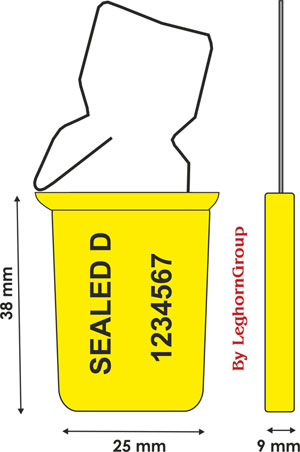

padlock style seal padlockseal 180-1 technical drawing



SIZE
Diameter: 1 mm (wire hasp) (3/64”)
Length: 98 mm (3” 55/64”)
Padlock body: 22 x 35 mm (55/64” x 1”3/8 ”)



MATERIAL
Wire hasp: steel
Body: polypropylene



COLOURS & CUSTOMIZATIONS

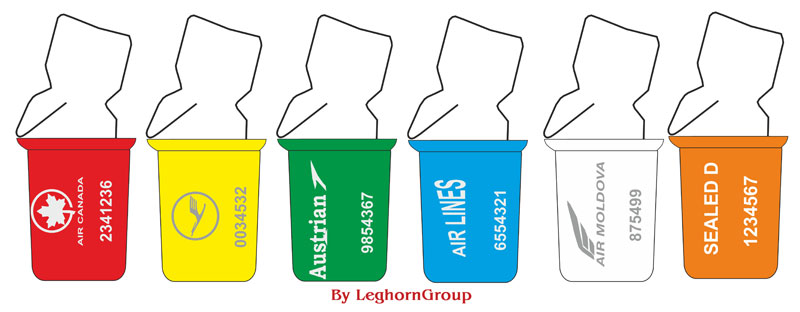

padlock style seal padlockseal 180-1 colours customizations



MARKING
– Laser marking
– Sequentially numbering (max 15 digits)
– Barcode possibility
– Customisation up to 20 digits on a line
– Logo printing upon customer’s request



PACKAGING
Cartons of 1000 seals
Carton dimensions: 36 x 27 x 18 cm (14” 11/64” x 10” 5/8” x 7” 3/32”)
Carton weight: 4,3 kg (9 lb)

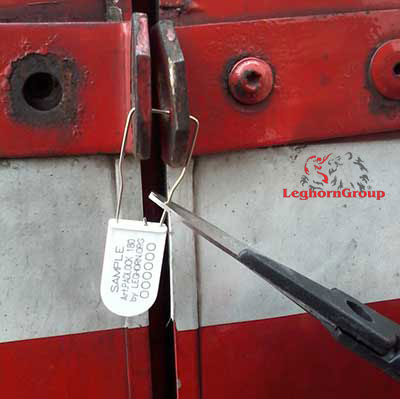

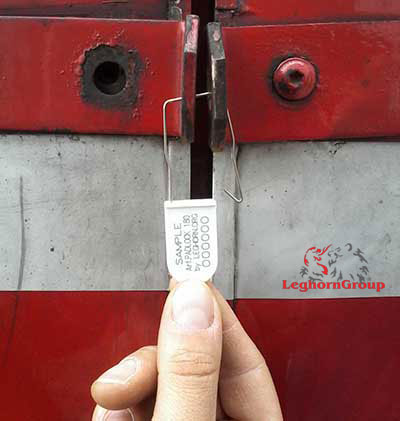

How to use

padlock style seal padlockseal 180-1 how to use

padlock style seal padlockseal 180-1 how to use
