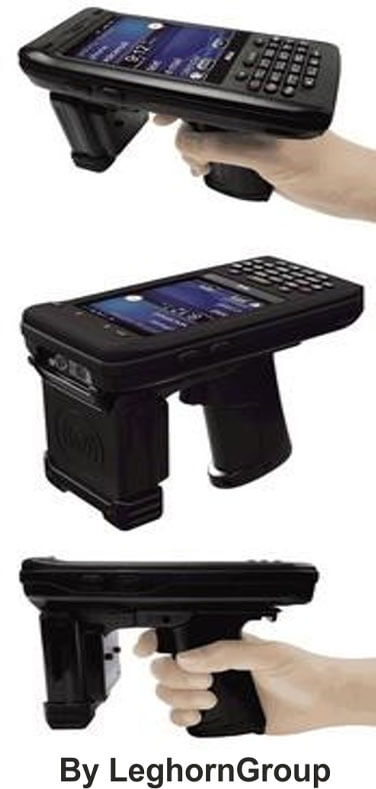

UHF RFID Reader EPR AT880 Hand-Held

UHF RFID Reader EPR AT880 is a PDA WM 6.5 full option, provided with both UHF and HF RFID frequency

REQUEST FOR QUOTATION

Description

uhf rfid seals reader epr at880 hand heldEPR AT880 is a PDA WM 6.5 full option, provided with both UHF and HF RFID frequency, which allows to develop a solution based on personal application requirements.



MAIN TECHNICAL SPECIFICATIONS
Windows CE 5.0 / Windows Embedded handheld 6.5.
Processor Marvell PXA 320 806MHz.
Memory RAM: 256 MB (optional 512 MB) ROM: 512 MB (optional 1 GB).
RFID UHF 900 MHz GEN2, ISO / IEC 18000-6C / 18000-6B (optional).
RFID HF 13.56 MHz ISO15693, MIFARE, ISO14443 A / B (optional).
Barcode Engine 1D Laser o 2D Imager Scanner (2D long-range barcode reading).
WLAN IEEE802.11 b / g / a (a / b / g / n, optional).
Bluetooth Class II, v2.1 + EDR.
Camera with Flash.
GPS.



SPECIFICATIONS
uhf rfid seals reader epr at880 hand heldPhysical Characteristics (LxWxH): 159 x 79 x 27,7 (35,2) mm.
Weight: 280 g (PDA only, without battery).
Reading range: 0M ~ 5M (according to Tag & Environment).
Protocol: GEN2, ISO / IEC 18000 – 6C / 6B (optional).
Frequency range: CE ETSI 865 MHz ~ 868 MHz, FCC 902 MHz ~ 928 MHz.
Operating temperature: -20 ° C ~ 60 ° C; • Storage temperature: -30 ° C ~ 70 ° C.
Humidity: 95% non-condensing.
Power:
Main Battery lithium-Ion Polymer 3,7 V 2,970 mAh (rechargeable).
Backup Battery lithium-Ion Polymer 3.7 V 80 mAh (rechargeable).
Power adapter input AC100V ~ 240 V / output DC 5V 3A



PROCESSOR AND MEMORY
Processor: Marvell PXA 320 806MHz .
Memory: 256 MB (512 MB optional) RAM / 512 MB (1 GB optional) ROM.



uhf rfid seals reader epr at880 hand heldAPPLICATIONS
Distribution:     Provisions general monitoring.
Healthcare:      Monitoring and healthcare inventory.
Warehouse:      Provisions monitoring and inventory.
Logistics:         Shipping and receiving.
Transport:        Transport routes accounting.
Production:      Production progress control.
