Aluminium seal with progressive numbering Crimpseal

Completely aluminium self locking seal

REQUEST FOR QUOTATION

Description

Completely aluminium and self-locking seal. It can be used with different type of sealing wires, steel or nylon cables and twine.

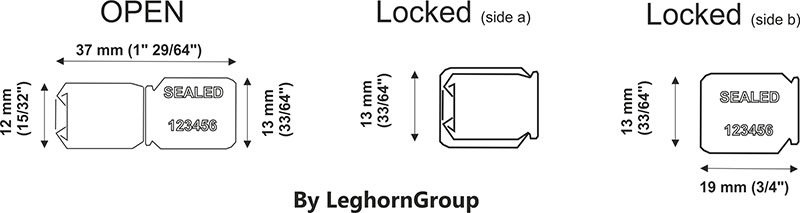

TECHNICAL DRAWING

aluminium seal crimpseal technical drawing



SIZES
Width: 5 mm (0″ 13/64″)
Length: 37 mm (1″ 29/64″) open
Length: 19 mm (0″ 3/4″) closed



MATERIAL
Aluminium
Polished aluminium upon request

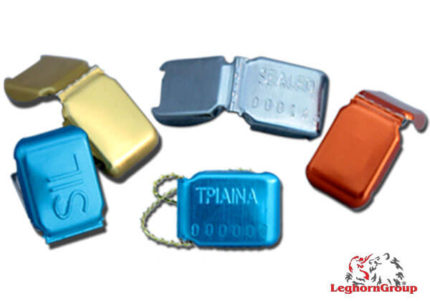

COLORS & CUSTOMIZATIONS

aluminium seal crimpseal colors customizations



MARKING
– Possible engraving
– Sequentially numbering (max 6 digits)
– Customisation up to 10 digits on a line
– Logo upon request



PACKAGING
A) Carton with 5.000 pcs spare parts
B) Carton with 5.000 pcs. in bags of 1000 pcs
C) Carton with 10.000 pcs. Spare parts
D) Carton with 10.000 pcs. in bags of 1000 pcs
E) Carton with 5.000 pcs. in strips of 20 pcs

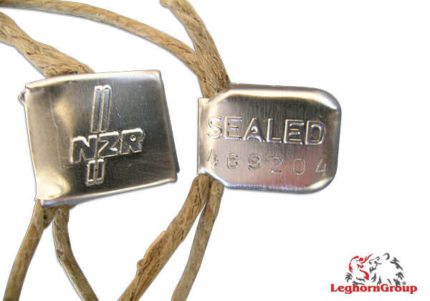

Examples of use

aluminium seal crimpseal examples of use

aluminium seal crimpseal examples of use

aluminium seal crimpseal examples of use

aluminium seal crimpseal examples of use

aluminium seal crimpseal examples of use

aluminium seal crimpseal examples of use

aluminium seal crimpseal examples of use
