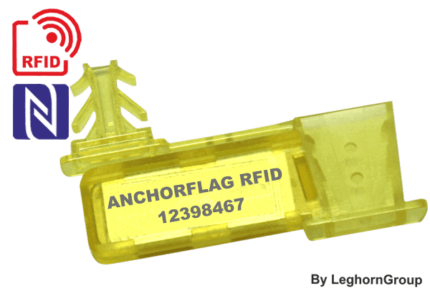

UHF/HF/NFC RFID Meter Seal ANCHORFLAG

Wire seal embedding UHF, HF or NFC tag for automatic identification function

REQUEST FOR QUOTATION

Description

Completely transparent plastic seal. The transparent plastic permits the integrity control of the locking mechanism.



UHF
– RF protocol: EPC Class 1 Gen2 – ISO/IEC 18000-6C
– Integrated Circuit(IC): IMPINJ Monza 3 ; Read/Write
– Memory: EEPROM
– Operating  Frequency: 860 – 960 MHz  – UHF Global
– Protection: IP66
– Operating temp: -20°C to +80°C
– Storage temp: -20°C to +80°C
– Tag dimension: 12 x 30 mm
– Resistance harsh factory environment
– Reading distance: Typical reading  with  handheld reader: 5 – 15 cm

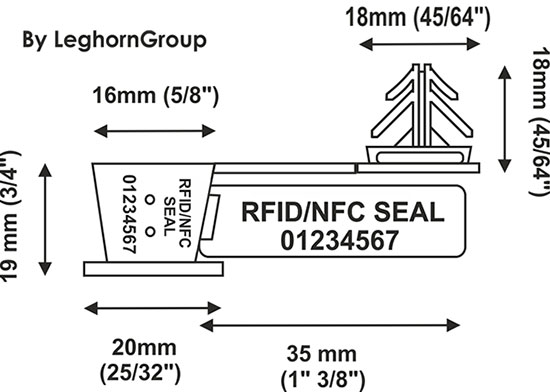

TECHNICAL DRAWING

wire plastic seal rfid anchorflag technical drawing



MATERIAL
Polycarbonate
Polystirene

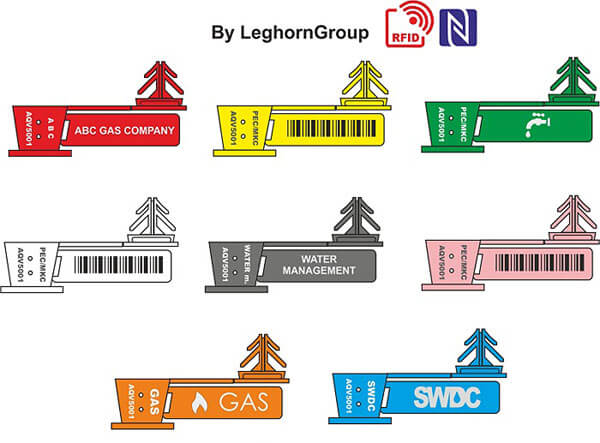

COLORS & CUSTOMIZATIONS

wire plastic seal rfid anchorflag colors customizations



MARKING OPTIONS
– LASER PRINT
– Sequenced numbering up to 15 digits
– Customised up to 20 characters on one line
– Logos available upon request
– For special orders, logo printing in relief



PACKAGING
4.000 seals per carton
carton size: 56 x 24 x 46 cm (22” 3/64” x 9” 29/64” x 18” 7/64”)
carton weigth: 12 kg (26 lb)

How to use

A) Insert the wire in the holes on the seals body.
B) Push the “anchor” part in the hole.
C) Press with the fingers till the seal is really closed. If it clicks by closing the safe closure is guaranteed.
