Cable seal UHF/HF/NFC RFID MINICABLE

Description

MINICABLE RFID is a metal adjustable cable-lock seal offering a high level of security thanks to it mechanical characteristics combined with the use of automatic radio frequency identification technology, RFID.

The presence of a unique RFID chip guarantees its complete non-clonability, reinforcing product security in the authentication of goods and their physical protection along the transport and logistics chain.

The availability of the product in two different operating frequency bands also ensures differentiated performances and therefore a wider possibility of use in the field. In particular, NFC product version makes it user friendly, with information accessible simply via smartphone or tablet.

MINICABLE RFID product is also available in a fixed-length option that allows using this security seal as special security key-holder.



TECHNICAL DRAWING

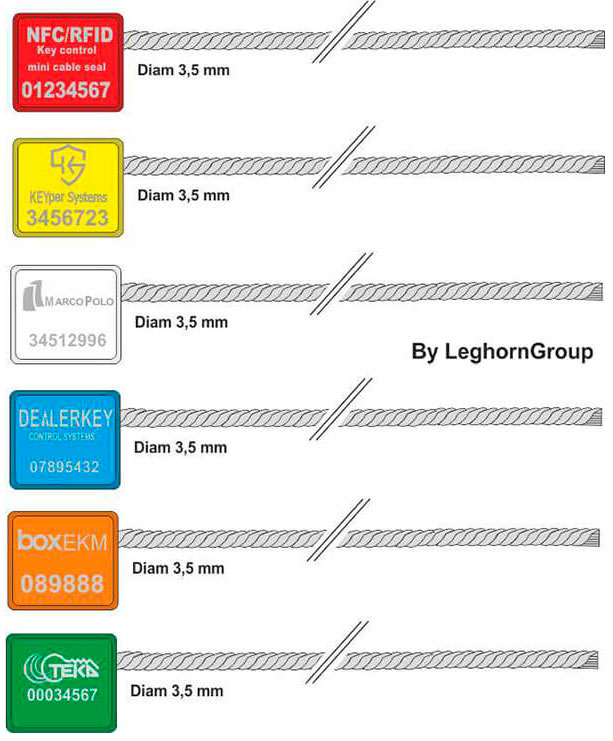

COLORS & CUSTOMIZATIONS



TECHNICAL SPECIFICATIONS
Operative frequency: 13.56 MHz – Protocol: ISO 14443A
RFID inlay type: HF Smart Label
RFID Chip: Ntag203, Ntag213
Reading Range HF/NFC: approx 3 cm (1″ 3/16″)

Operative frequency: 860-960 MHz – Protocol: ISO 18000-6
RFID inlay type: UHF Smart Label
RFID Chip: Impinj Monza 5/Alien H3
Reading Range UHF: approx 10 cm (3″ 15/16″)

Plastic box size: 42 mm*46 mm*25 mm (1″ 21/32″*1″ 13/16″*63/64″), Cable: Diameter 3.5 mm (9/64″), Length 249 mm (9″ 51/64″)
Material: carbonitrured steel + shock-proof polystyrene in accordance with Restriction of Hazardous Substances (RoHS), European Directive 2002/EC
Marking (option): Laser engraving for alphanumeric string, logo, barcode
Operative Temperature: -20℃ ~ 55℃

Warranty: 1 year

Certificate MIRDC
