Cargoclamp

High security barrier seals for container

REQUEST FOR QUOTATION

Description

The CARGOCLAMP is a high security barrier seal designed to protect against attempts made to break off container doors. The CARGOCLAMP blocks not only the container doors but also protects against potential tampering to the door handles, which are also covered by the seal’s barrier. The seal gets positioned over the first door handle and THE CARGOLAMP gets blocked by a closing bolt seal. Then the other door handle gets covered by the adjustable part of the barrier. The handle gets fixed into place by a closing bolt seal, and in doing so THE CARGOCLAMP also blocks the container doors.

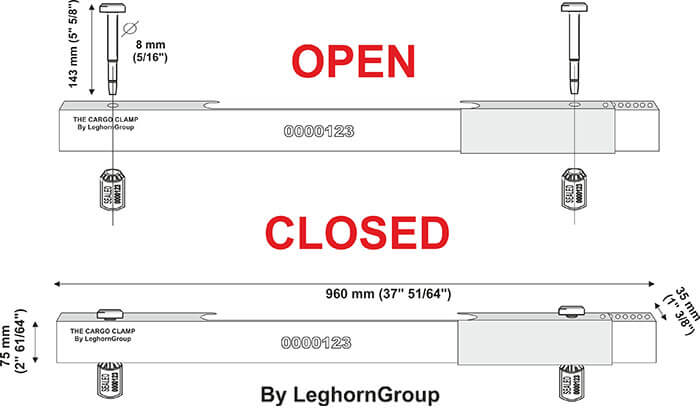

TECHNICAL DRAWING

barrier seals cargoclamp technical drawing



SIZE
Length: 960 mm (37″ 51/64″)
Width: 35 mm (1″ 3/8″)
Pin diameter: 8 mm (0″ 5/16″)
Pin length: 143 mm (5″ 5/8″)



MATERIAL
Plastic parts: Polycarbonate or ABS in accordance with : Restriction of Hazardous Substances (RoHS) listed in the European Directive 2002/EC
Metallic parts: Galvanized steel



TRACTION RESISTANCE
3000 kgs

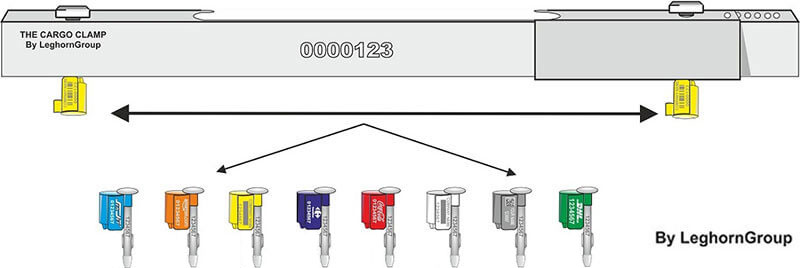

COLORS & CUSTOMIZATIONS

barrier seals cargoclamp colors customizations



SEQUENTIAL NUMBERING AND CUSTOMISATION
– Sequenced numbering up to 7 digits
– Alphanumeric numbering possible
– Bar-code possibility
– Customised up to 20 characters on one line
– Logos available upon request
– All metal components are identically numbered
– Colored closure pin
– Both the numbering and the customisation are protected by the polycarbonate transparent cover that can prevent any kind of tampering.



PACKING
10 pcs per carton
Cartone size: 97x42x11 cm (38″ 3/16″ x 16″ 17/32″ x 4″ 21/64″)
Carton weight: 22,5 kgs (49lb)

How to use

barrier seals cargoclamp how to use

barrier seals cargoclamp how to use

barrier seals cargoclamp how to use

barrier seals cargoclamp how to use
