MENTORSEAL Active Seal
Bolt-lock type High Security electronic seal working with active RFID technology
LEGHORNGROUP has been dedicated to designing and producing mechanical security seals for the logistics sector. The dynamic company has a rich and well cultured background in anti tampering systems and the best means to tackle and prevent tampering or pilferage to your goods.
LEGHORN’s management team, aware of the importance of investing in projects that include electronic technology have spent the last 10 years developing and expanding their current range of products. The latest products manufactured in house combine the traditional methods of mechanical tamper prevention with the most modern usage of RFID technology.
LEGHORN is proud to present their first single use active Rfid seal.
MENTORSEAL is an innovative seal that combines the high security of an ISO 17712:2013 approved seal, with the technical features of an active device that uses Radio frequency to automatically identify the container and/or vehicle.
The primary security function of the seal is integrated with the possibility of improving the logistics flow by keeping track of the container.
MENTORSEAL can be read with static gateway readers of handheld portable readers, that are equipped with the relevant reading module of the seal- operating on a double frequency 433 MHz -2.45 GHz.
Thanks to the presence of active RFID , the seal can communicate over significant distances (e.g. over 15m).
The seal is characterised by it’s own unique Identification code. Furthermore as it is a single use seal its pricing is extremely competitive.
Some of the main innovative features of MENTORSEAL are:
- Guaranteeduniquenessof the coupling betweenthe head of theseal with thepinand barrel
- Timestamp of when the seal is “born” stored in the memory;
- Timestamp of when the seal is closed stored in the memory;
- Timestamp of the opening /or tampering of the seal stored in the memory.
DATA COMMUNICAITON: Any data received from MENTORSEAL using a hand held reader can be downloaded to a server whilst offline or alternatively online using WiFi or GPRS; If working with a fixed reader it can be connected to a PC via an Erthernet communication interface.
TRACEABILITY: MENTORSEAL can store in its memory 15 Log and the container ID.
This allows the user the trace the logistics flow of the container using the information received.

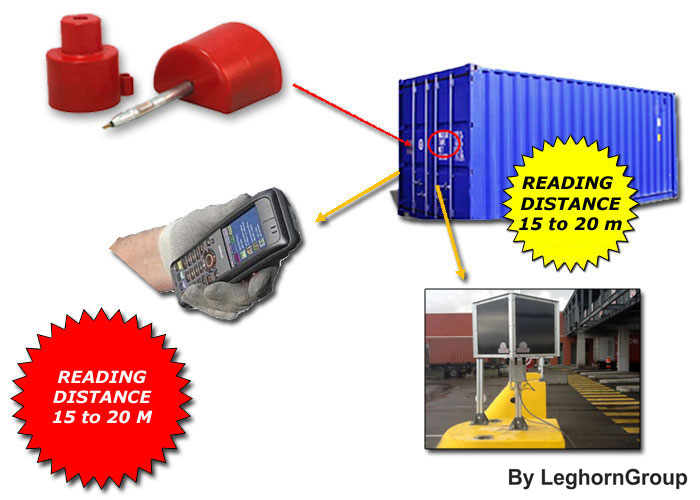

READING DISTANCE: MENTORSEAL can be read at a distance of over 15 m by way of “Contact reading” or “in line of sight”, allowing the reading to be taken whilst the container is in transit and speed up the security operations.
|Radio Frequency specification|
|Frequency||4.33 MHz / 2.45 GHz|
|Reference RF Standard||ETSI EN 300-220 / ETSI EN 300-440|
|RF Protocol||Proprietary of the manufacturer|
|Material||Steel + ABS or polystyrene in accordance with Restriction of Hazardous Substances (RoHS) listed in the European Directive 2002/EC.|
|Operating Temperature||– 20°C / + 60 °C|
|Storage Temperature||– 55°C / + 125 °C|

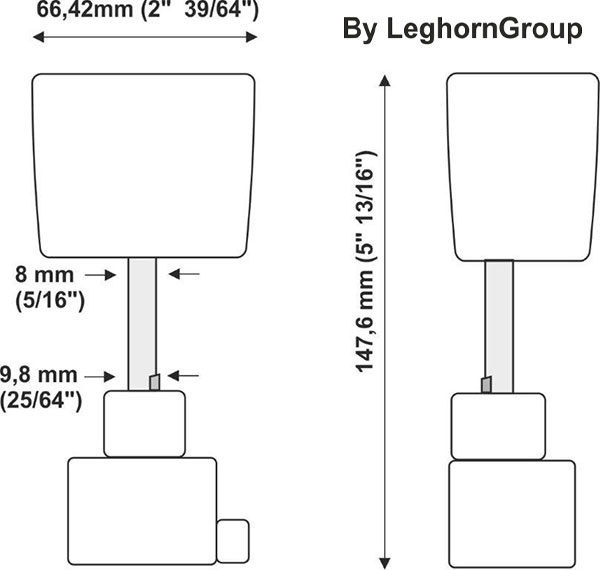

|Electronic Part Size (flag)||64 x 50 x 40 mm|
|Metal pin size||8 mm diameter – lenght mm 74|
|Bolt size||32 mm diameter – lenght mm 40|
|Package size||32 x 25 x 10 cm|
|Package weight||4 kg|
|Package number seal for box||24 pcs|
|Personalization serial number||Yes|
|Personalisation logo||Yes on request|
|Reading distance handheld reader||12 m|
|Reading distance gate reader||20 m|
|Memory read / write||Yes|
|Cycle read / write||100.000|
|Memory size||1 Kbyte|
|TID (tag unique identification)||yes|
|S/N in memory the same normal seal||yes|
|RTC (real time clock system)||yes|
|Record in memory timestamp seal closed||yes|
|Record in memory timestamp seal tamper||yes|
|Record in memory timestamp log event||yes|
|Unique association between pin and bolt||yes|
|Lifetime if seal is active (electronic part)||1 year|
|Integration with handheld reader||Libraries available|
|Integration with gate reader||Libraries available|
MENTORSEAL HAS BEEN MANUFACTURED AROUND THE INTERNAL MECHANICAL COMPONENTS OF NEPTUNESEAL ISO 17712:2013

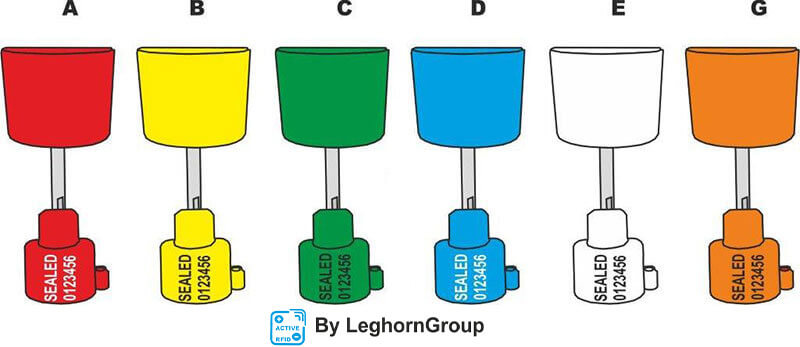

COLORS & CUSTOMIZATIONS
How to use

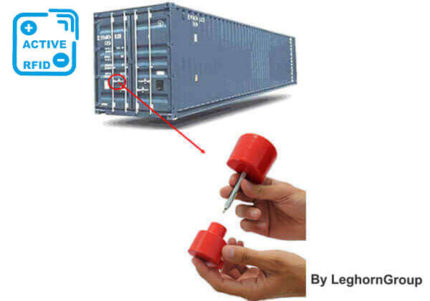

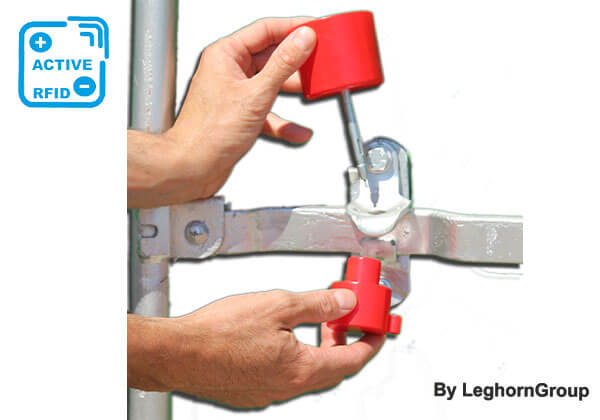

A) Insert the nail of the MENTORSEAL electronic seal in the appropriate hole of the container handle and present the slot of the second piece of the seal in correspondence with the nail.
B) Insert the nail into the slot of the second piece of the MENTORSEAL electronic seal and press firmly until you hear a click.
C) From this moment on, the MENTORSEAL seal is closed and its electronic parts have activated.
