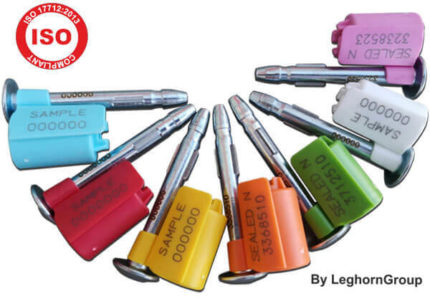

High security container bolt seal NEPTUNE SEAL

High Security Bolt Seal for containers and Customs. Compliant with ISO 17712: 2013

REQUEST FOR QUOTATION

Description

High Security Container Bolt Seal

NEPTUNE SEAL is a bolt seal, compliant with high security international standard ISO 17712:2013 and specifically with the requirement of having the internal metal part exceeding 18 mm. The patent pending innovative mechanical design is characterised by two metal tabs attached to the bolt, which securely slot into the locking channel, thus preventing any breaching by high speed spinning of the female part of the seal. Any tampering attempt will give evidence of irreparable damage onto the bolt lock seal.

NEEDED CERTIFICATES TO BE IN GOOD STANDING WITH THE USE OF HIGH SECURITY SEALS COMPLIANT WITH ISO 17712: 2013



TECHNICAL DRAWING

high security bolt seal neptuneseal technical drawing



SIZE
Length: 73.5 mm (2″ 57/64″)
Diam (head): 20 mm (25/32″)
Diam (pin): 8 mm (5/16″)



MATERIAL
Metal parts: Carbonitrided steel
Plastic parts: Polystyrene with pigment paint compliant with safety requirement of RoHS – Restriction of Hazardous Substances, European Directive 2002/EC.

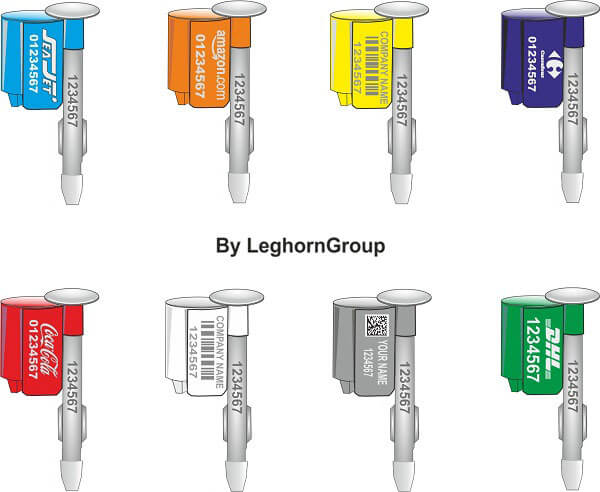

COLORS & CUSTOMIZATIONS
(Photos and drawings are indicative.)

high security bolt seal neptuneseal colors customizations



MARKING OPTIONS
– Laser etching
– Sequential numbering up to 15 digits
– Barcode
– Data Matrix
– RFID option
– Customised printing up to 20 alphanumeric characters on one single line
– Client logo printing or embossing on request



PACKAGING
250 pcs per carton
Carton size: 39×19×16 cm (15″ 23/64″×7″ 31/64″×6″ 19/64″)
Carton weight: 13,3 kg (29 lb)

How to use

A) Please check that metal pin and plastic bolt have the same numbering before using it.

neptuneseal how to use

B) Remove the pin from its site.

neptuneseal how to use

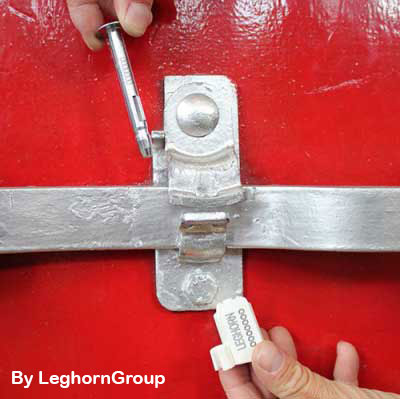

C) Insert pin tip into the container handle ring.

neptuneseal how to use

D) Slide pin tip into the hole of the bolt part of NEPTUNE SEAL and press steadily.

neptuneseal how to use

E) Now the seal is properly closed.

neptuneseal how to use

F) Use suitable shears to open the seal.

neptuneseal how to use

G) Collect the broken parts of the seal.

neptuneseal how to use

H) Check if the seal body shows evidence of tampering signs different from those caused by the used shears: if everything is OK then the cointainer can be opened.

neptuneseal how to use

Video

Certificates

certificates iconCertificate MIRDC
certificates iconNeeded certificates with the use of high security seals compliant with iso 17712: 2013

General presentation

icona presentazione catalogoView presentation
