Plastic nose wire for face mask

Plastic nose wire for face mask. Available size:

  • single core 0.45 mm and 0.60 mm
  • double core 0.55 mm and 0.60 mm
REQUEST FOR QUOTATION

Description

Plastic nose wire for face mask

The plastic nose wire for face mask, made of reinforced plastic with metallic core, is currently the cheapest and the most efficient way that allows the mask to be effectively positioned and securely sealed in the nose area.

It can be supplied in pre-cut pieces or in spools of 2000 m (6561 ft) or 5000 m (16404 ft).

*Available in both PVC versions: certified for medical use and without certificate for medical purposes.

Here below an overview of the available articles:

Single core nose wire:

  • PP single core 0,45 mm (1/64″) – in spools of 5000 meters (16404 ft)
  • PVC single core 0,45 mm (1/64″) – in spools of 2000 meters (6561 ft)
  • PVC single core 0,60 mm (1/32″) – in spools of 1500 meters (4921 ft) and 2000 meters (6561 ft)

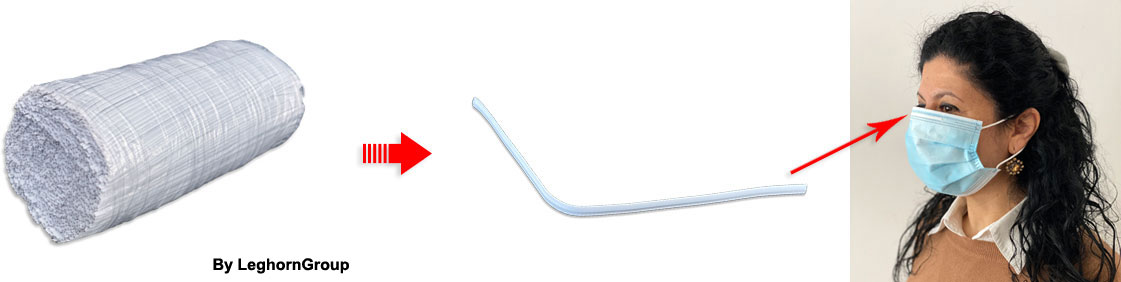

plastic nose wire for face mask



Double core nose wire:

  • PP double core 0,60 mm (1/32″) – width 8 mm (5/16″) – in spools of 600 meters (1968 ft)
  • PP double core 0,55 mm (1/64″) – width 5 mm (13/64″) – in spools of 1000 meters (3280 ft)

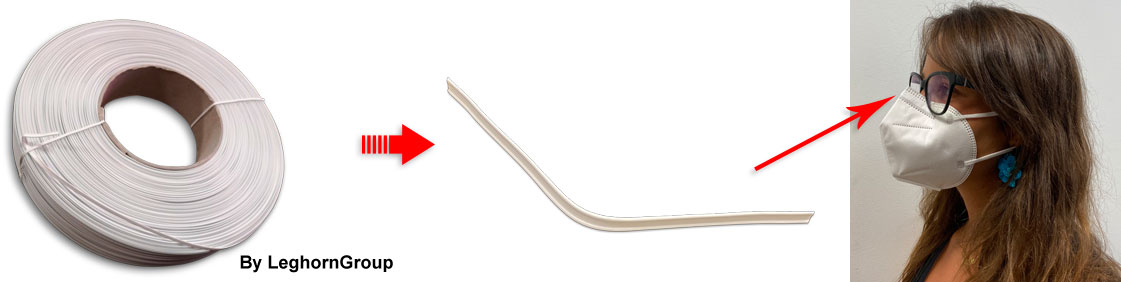

nose bridge wire double core



Product without certificate for medical use
Art. PFT045
Nose wire with metallic core diam. 0,45 mm (1/64″)
Product certified for medical use
Art. PFT045MED and Art. PFT060MED
Nose wire with metallic core diam. 0.45 mm (1/64″) and 0.60 mm (1/32″)
Core nose wire for surgical masks:
pre-cut pieces of 10 cm (3″ 15/16″)
Core nose wire for surgical masks:
certified for medical use
In reels with metallic core of 0.6 mm (1/32″)
Reels of 1500 m (4921ft)
Weight: 8 kg (17 lb 10.19oz) (5 gr./m)
Core nose wire for surgical masks
in reels of 400 m (1312 ft).
Weight 1,6 kg (3lb 8.4 oz) (4 gr/m)
Core nose wire for surgical masks:
certified for medical use
In reels with metallic core of 0.45mm (1/64″)
Reels of 2000 m (6561ft)
Weight: 8 kg (17lb 10.19oz) (4 gr/m)

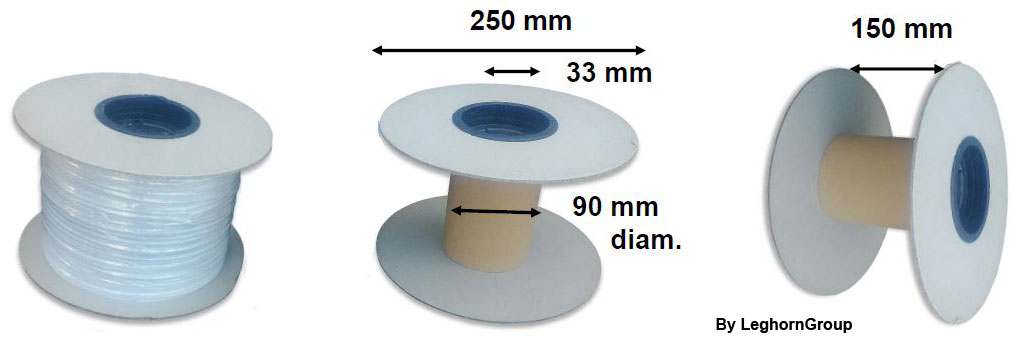

Technical specifications of the plastic reel

plastic nose wire for face mask



Single core nose wire:

PVC for medical use
1 wire diameter 0.60 mm
White colour
Core nose wire total width: 3.6 mm
Reel of 7 kg = 1500 m
Reels information: Flange 250 mm ,
Height 150 mm , hole 33 mm
PVC for medical use
1 wire diameter 0.45 mm
White colour
Core nose wire total width: 3 mm
Reel of 7 kg = 2000 m
Reels information: Flange 250 mm,
Height 150 mm, hole 33 mm
PP
1 wire diameter 0.45 mm
White colour
Core nose wire total width: ≈ 3 mm
Reel of 12/15 kg = 5000 m
Reels information: Flange 400 mm,
Height 215 mm, hole 32.1 mm



Double core nose wire:

Core: 0,60 mm (1/32″) annealed iron
Material: in PP
Width: 8 mm (5/16″) +/- 0,1mm
Resistance: 400 – 700 N/mm2
In spools of 600m (1968 ft) made of carton
Weight: kg 5 (11 lbs) each spool

Packaging:
Boxes of 5 spools
Size: 38x34x34 cm (14″ 15/16″ x 13″ 3/8″ x 13″ 3/8″)
Weight:  kg 25 (55 lbs)

Core: 0,55 mm (1/64″) annealed iron
Material: in PP
Width: 5 mm (3/16″)
In spools of 1000 mt (32800 ft) made of carton
Spool diameter: External 250mm – Internal 160mm
Weight: kg 6 (13 lbs) each spool

Packaging:
Boxes of 5 spools
Size: 40x40x40 cm (15″ 3/4″ x 15″ 3/4″ x 15″ 3/4″)
Weight:  kg 23

Certificates

certificati iconaWestlake Global Compounds
