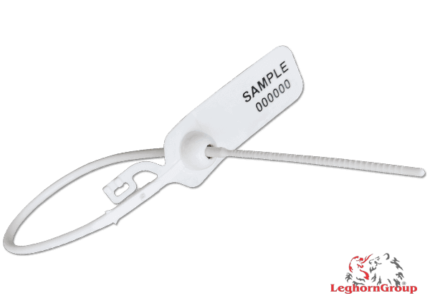

Pull-tight plastic seal JUPITER 1.3×225 mm

Pull-tight plastic seal with metal locking insert. Tear-off tag possibility. Label size 22×50 mm

REQUEST FOR QUOTATION

Description

Pull-tight plastic seal

Pull-tight plastic seal. Quick and safe application. Metal locking insert and possible tear-off tag for easy removal.

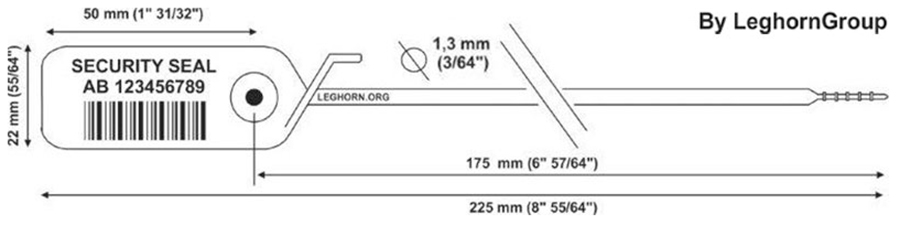

TECHNICAL DRAWING

plastic seal jupiter 1.3×225 mm technical drawing



SIZE
Diameter: 1,3 mm (3/64”)
Length: 225 mm (8” 55/64”)
Label: 22×50 mm (55/64”×1” 31/32”)



MATERIAL
In accordance with : Restriction of Hazardous Substances (RoHS) listed in the European Directive 2002/EC.



COLOURS & CUSTOMIZATIONS

pull tight plastic jupiter seal colours customizations



MARKING OPTIONS
– Thermal transfer
– Sequentially numbering (max 15 digits)
– Barcode possibility
– Customisation up to 20 digits on a line
– Logo printing upon customer’s request
– For special orders embossed logo printing
Label: 22×50 mm



PACKAGING
Cartons of 1.000 seals – in strips of 10 pcs
Carton dimensions: 56×33×19 cm (22” 3/64”×12” 61/64”×7” 31/64”)
Carton weigth: 2 kg (4 lb)

How to use

A) Insert the tail of the plastic JUPITER SEAL into the holes of the truck doors.

v

B) Then insert the tail into the metal locking insert.

plastic seal jupiter how to use

C) Pull the tail to seal it properly.

plastic seal jupiter how to use

D) Use scissors or shears to remove the seal.

plastic seal jupiter how to use

Video

Certificates

certificates iconDeclaration of food conformity

General presentation

icona presentazione catalogoView presentation
