High security container barrier seal ISO 17712 compliant: FORK SEAL C

High security container barrier seals. ISO 17712: 2013 approved

REQUEST FOR QUOTATION

Description

High security container barrier seal ISO 17712

High security container barrier seals ISO 17712:2013 approved. In order to avoid any possibility of container doors opening, the two central barriers of the container should be locked as tightly as possible, according to the sequence of holes on the metal bar. Thanks to its technical measures, FORK SEAL is a really safe product. It is also CARBONITRITED, which makes really difficult to cut it. Both the metal bar and the seal have the same numbering and customization. It is not possible to both reproduce them except at really high cost.



TECHNICAL DRAWING

barrier seals forkseal c technical drawing



SIZE
Length: 480 mm (18″ 57/64″)
Width: 35 mm (1″ 3/8″)



MATERIAL
Galvanized steel
Painted  galvanized steel on request (red – green – yellow – orange)



COLORS & CUSTOMIZATIONS
(Photos and drawings are indicative.)

barrier seals forkseal c colors customizations



SEQUENTIAL NUMBERING AND CUSTOMISATION
– Hot print engraving on the closure pin
– Sequenced numbering up to 6 digits
– Customization up to 15 characters
– Logo upon request
– Logo and progressive numbering are the same both on the metal bar and on the seal
– Progressive numbering is also engraved on the metallic pin



PACKAGING
25 pcs per carton
Carton size: 50x20x15 cm (19″ 11/16” x 7″ 7/8” x 5″ 29/32“)
Carton weight: 15 kg (33lb)

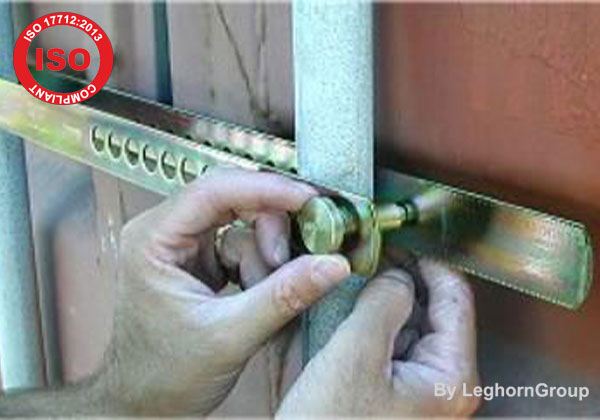

How to use

barrier seals forkseal c how to use

barrier seals forkseal c how to use

barrier seals forkseal c how to use

barrier seals forkseal c how to use

barrier seals forkseal c how to use

Certificates

certificates iconNeeded certificates with the use of high security seals compliant with iso 17712: 2013
certificates iconDayton T.Brown ISO 17712
certificates iconCertificate SGS
