Metal clip seal MATCRIMP 34×8 mm

Galvanized and brass coated steel seal. Metal clip seal. No possibility of progressive numbering

REQUEST FOR QUOTATION

Description

Metal clip seal MATCRIMP 34×8

Completely self locking metal seal.

It can be used with: sealing wires, custom string and nylon wire.

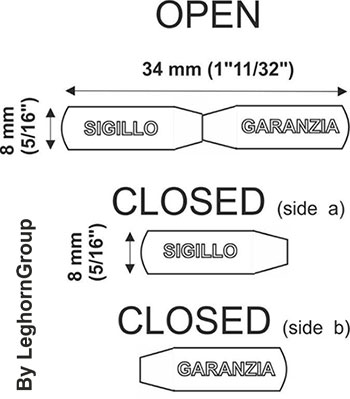

TECHNICAL DRAWING

metal seal matcrimp 34×8 technical drawing



SIZE
Width: 8 mm (0″ 5/16″)
Length: 34 mm (open) (1″ 11/32″)
Length: 17 mm (closed) (0″ 43/64″)



MATERIAL
Galvanised steel
Brass- coated steel



COLORS & CUSTOMIZATIONS

metal seal matcrimp colors customizations



MARKING
– METALLIC ENGRAVED
– NO NUMBERING
– Customization up to 10 characters on one line
– Logo available upon request



PACKING
5000 pcs per carton
Carton size: 28x16x22 cm (11″ 1/32″ x 6″ 19/64″ x 8″ 21/32″)
Carton weight: 3,9 kg (8lb)

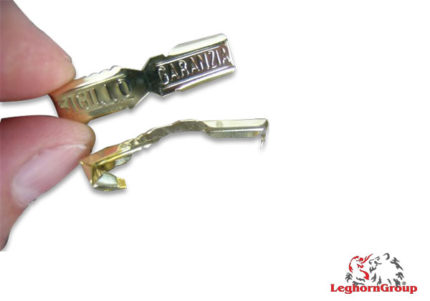

Examples of use

metal seal matcrimp examples of use

metal seal matcrimp examples of use
