Fixed length seal HORN SEAL 260 mm

Fixed length seal. Once the seal with snap and ring closure has been closed, there is no way to reopen it apart from breaking it

REQUEST FOR QUOTATION

Description

Horn seal is a fixed length plastic seals that can be 100% recyclable.
Fixed length plastic seal. Quick and safe application. Once the seal with snap and ring closure has been closed, there is no way to reopen it apart from breaking it.
Fixed length plastic seal has a quick application an it is suitable to be used on trucks.
It can be customised according to a calendar function marking: days and month can be marked with a permanent marker to mark the exact time of shipment.
Insert the tail of the seal in the closure mechanism to seal the fixed length seal, Horn seal.
It is manufactured in six different standard colours: white, yellow, red, orange, green and blue.
Laser customisation and progressive numbering.
It is manufactured in strip of 10 pieces and in two different size:
7×260 mm (9/32”×10” 15/64”)
7×215 mm (9/32”×8” 15/32”)



CALENDAR FUNCTION
12 numbers for each month
31 numbers for each day of the month

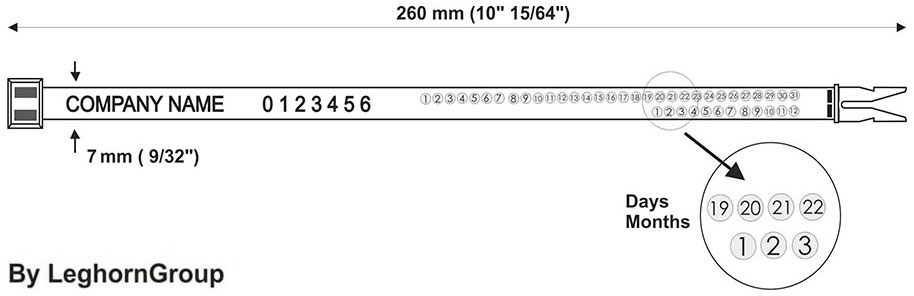

TECHNICAL DRAWING
plastic seal horn seal 260 mm technical drawing



SIZE
Diameter: 7 mm (9/32”)
Length: 260 mm (10” 15/64”)



MATERIAL
In accordance with: Restriction of Hazardous Substances (RoHS) listed in the European Directive 2002/EC.



COLOURS & CUSTOMIZATIONS

plastic seal horn seal colours customizations



MARKING
– Laser marking
– Sequentially numbering (max 15 digits)
– Barcode possibility
– Customisation up to 20 digits on a line
– Logo printing upon customer’s request
– For special orders embossed logo printing



PACKAGING
Cartons of 1000 seals – in strip of 10 pcs
Carton dimensions: 24×38×19 cm (9” 29/64”×14” 61/64”×7” 31/64”)
Carton weight: 2,4 kg (5 lb)
