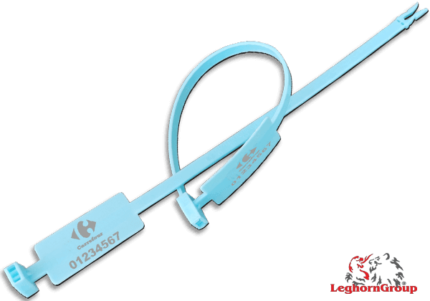

Plastic fixed length seal Ringlabelseal 260 mm

Plastic fixed length seal. Label size 20 x 40 mm

REQUEST FOR QUOTATION

Description

Plastic fixed length seal that can be customized and have a progressive numbering. Once the seal with snap and ring closure has been closed, there is no way to reopen it apart from breaking it.

CALENDAR FUNCTION

12 numbers for each month
31 numbers for each day of the month



TECHNICAL DRAWING

plastic seal ringlabelseal 215 mm 260mm technical drawing



SIZE
Diameter: 7 mm (9/32”)
Length: 215 mm – 260 mm (8” 15/32”) – (10” 15/64”)
Label size: 20 x 40 mm (25/32” – 1” 37/64”)



MATERIAL
In accordance with : Restriction of Hazardous Substances (RoHS) listed in the European Directive 2002/EC.



COLOURS & CUSTOMIZATIONS

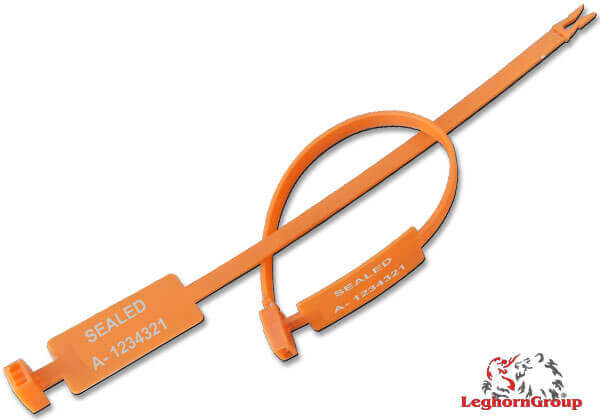

plastic seal ringlabelseal colours customizations



MARKING
– Laser marking
– Sequentially numbering (max 15 digits)
– Barcode possibility
– Customisation up to 20 digits on a line
– Logo printing upon customer’s request
– For special orders embossed logo printing



PACKAGING
Cartons of 1000 seals – in strip of 10 pcs
Carton dimensions: 37 x 24 x 25 cm (14” 9/16” x 9” 29/64” x 9” 27/32”)
Carton weight: 2,5 kg (5 lb)

How to use

A) Insert the tail of the plastic Ringlabelseal into the holes of the mean of transport you want to seal.

plastic seal ringlabelseal how to use

B) Then insert the tail.

plastic seal ringlabelseal how to use

C) Use scissors or shears to remove the seal.

plastic seal ringlabelseal how to use
