Stainless Steel Wire
Annealed steel AISI 304. 1 mm diameter stainless steel sealing wire technical data table.
Description
It may be necessary to use a stainless steel sealing wire since its material does not oxidize and may preserve its characteristics for a long time.
The wire has a 1mm diameter and is composed of a central wire of 0.5mm and a second wire of 0.3mm that revolves around.
It is suitable for every type of wire seals especially is a sturdier wire is needed.
We generally supply it in different spools weight and in pre-cut lengths which vary from 10 to 150 cm long.

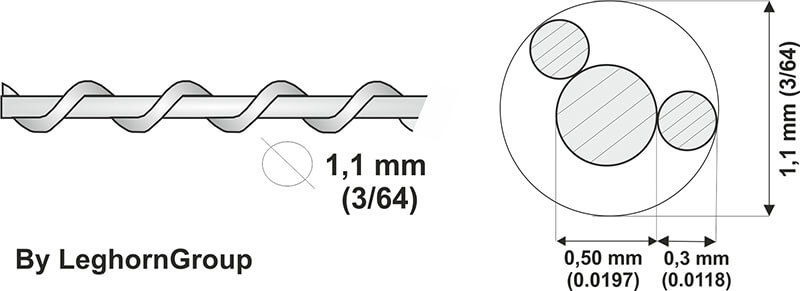

TECHNICAL DRAWING

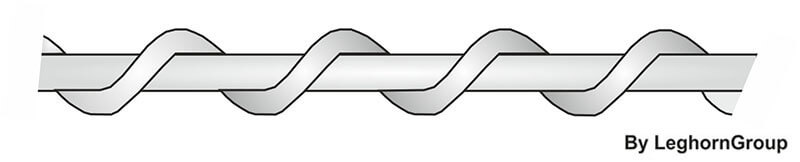

COLORS
1 MM DIAMETER STAINLESS STEEL SEALING WIRE TECHNICAL DATA.
GRADE |
N.W. |
TS |
EL |
|
(kg) |
(Mpa) |
(%) |
304 |
483.88 |
785 |
45 |
1 MM DIAMETER STAINLESS STEEL SEALING WIRE CHEMICAL COMPOSITION (%).
C |
Si |
Mn |
P |
S |
Cr |
Ni |
0.03 |
0.46 |
1.30 |
0.026 |
0.008 |
18.23 |
8.03 |

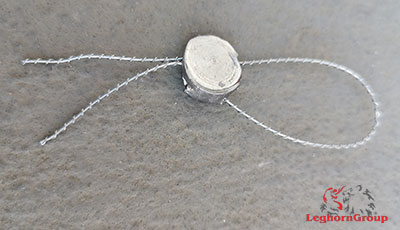

Examples of use
