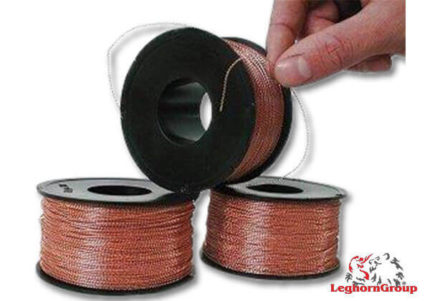

Nylon Copper Sealing Wire

1,1 mm diameter nylon copper sealing wire technical data table

REQUEST FOR QUOTATION

Description

This nylon-copper sealing wire is very sturdy, extremely flexible and cannot accidentally injure the user.
It is suitable for all kind of wire seal and it is supplied in various reels weight.
The nylon-copper sealing wire has a diameter of 1mm.
It is very suitable in the refinery and fuel handling field.
It may be used with all our wire seals.

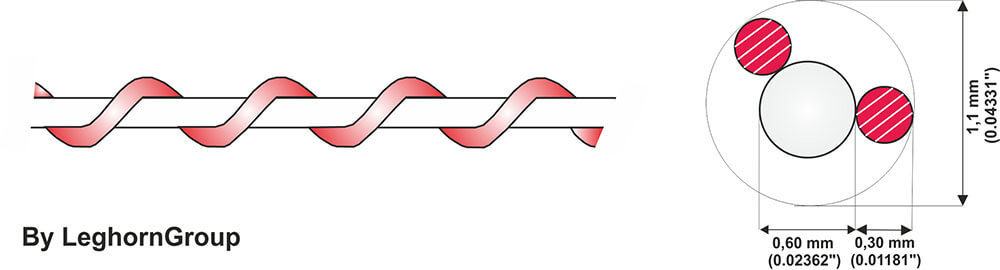

TECHNICAL DRAWING

nylon copper sealing wire technical drawing



MATERIAL CLASSIFACTION
Nylon – Copper

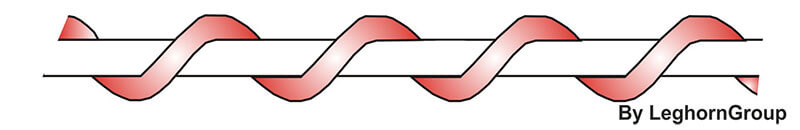

COLORS

nylon copper sealing wire colors



COMPOSITION
Core nylon : Ø 0.6 mm  – 100%
Poliammide Spiral: red ANNEALED copper: Ø 0.3 mm . in conformity of ASTM 49,92 – UNI EN 1977 – 2000



MECHANICAL CARACHTERISTICS: TOTAL DIAMETER /  BREAKING LOAD

Standard Diameter mm TOLLERANCE Ø BREAKING LOAD N/mm²
1.00 10 % 159/178

Strength per metre: 1,50g (1 Kg = 650 m ca)



STRUCTURAL CARACTHERISTICS:
Coil distance: 1,50  mm  (66 coils per 100 mm)
