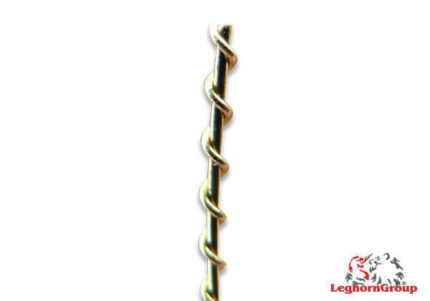

Brass Sealing Wire
1mm diameter red brass sealing wire technical data table
Description
The brass sealing wire has the same specifications and features of the copper sealing wire.
Particularly suitable in the refinery and fuel handling field, the brass sealing wire with the related wire seal are an essential support against tampering.
Brass sealing wire has a standard diameter of 1mm and we generally supply it in different spools weight and in pre-cut lengths which vary from 10 to 150 cm long.
TECHNICAL DRAWING
MATERIAL CLASSIFACTION
Brass Annealed
CHEMICAL BREAKDOWN
Cu% | Zn% | Pb% | Fe% | Al% | Ni | Sn | S |
67,000 | 32,000 | 0,010 | 0,0014 | 0,010 | 0,049 | 0,016 | 0,005 |
COMPOSITION
Core wire: Ø mm 0.50 – Spiral wire: Ø mm 0.30
MECHANICAL CARACHTERISTICS: TOTAL DIAMETER / BREAKING LOAD
Standard Diameter mm | TolleranceØ | Breaking load N/mm² |
1.00 | 10 % | 400/430 |
STRENGTH PER METRE: 2,63g (1 Kg = 380 mt appx )
COLORS
STRUCTURAL CARACTHERISTICS
Coil distance: 2.00 mm (50 coils per 100 mm)
SURFACE CARACHTERISTICS
Surface sate: glossy
ELONGATION
23-23%
